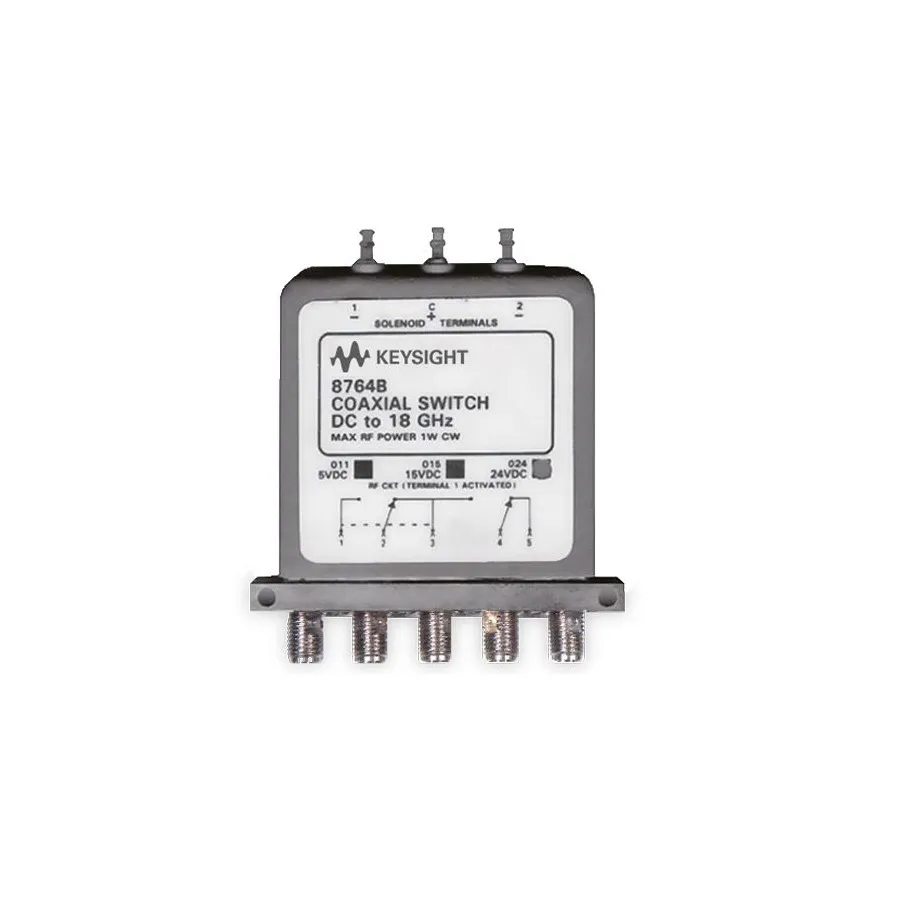

Keysight 8764B/024 Coaxial Switch

Overview

The Keysight 8764B/024 is a 5-port unterminated multiport coaxial switch designed for RF and microwave test applications. This variant features 24V solenoid actuators without TTL logic control, offering excellent broadband performance with high isolation and low standing wave ratio.

Key Features

• Frequency range: DC to 18 GHz
• Unterminated multiport coaxial switch with five RF ports
• 24V solenoid configuration (without TTL logic)
• Insertion loss: less than 0.20 dB up to 2 GHz, less than 0.5 dB up to 18 GHz
• SWR (through line): less than 1.10 DC to 2 GHz, less than 1.20 up to 12.4 GHz, less than 1.30 up to 18 GHz
• Port-to-port isolation: greater than 90 dB across the frequency range
• Long operational life: greater than 1 million switching cycles
• Insertion loss repeatability: less than 0.03 dB typical
• Current interrupt and position indication capability

Applications

• RF and microwave test and measurement systems
• Automated test equipment (ATE) in manufacturing
• Laboratory and bench-top testing
• Signal routing in broadband systems
