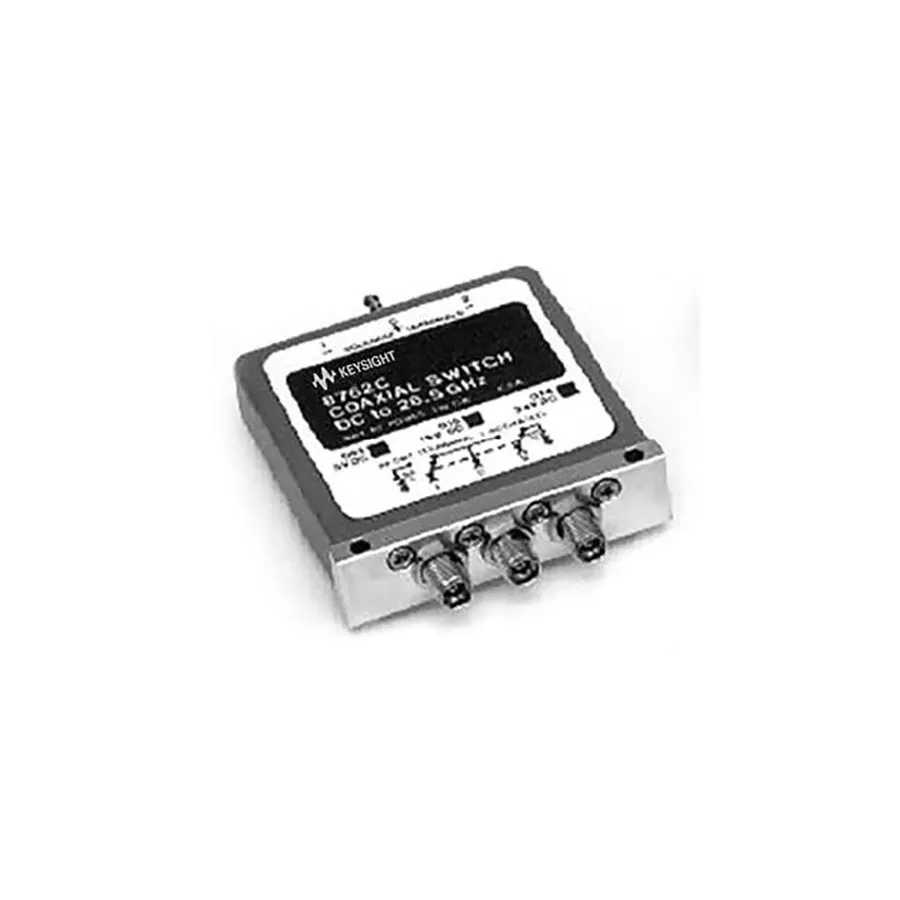

Keysight 8762C/024 Coaxial Switch
Request a quote
Keysight 8762C/024 is a DC to 26.5 GHz SPDT coaxial switch with high isolation (>90 dB to 18 GHz) and low insertion loss (<0.5 dB to 18 GHz).
Product details
| Model | 8762C/024 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight 8762C/024 is a single-pole double-throw (SPDT) coaxial switch operating from DC to 26.5 GHz. It delivers excellent electrical and mechanical performance with high isolation, low standing wave ratio (SWR), long operational life, and exceptional repeatability for broadband RF switching applications.
Key Features
- Frequency range: DC to 26.5 GHz
- SPDT configuration with 24V solenoids (without TTL logic)
- Isolation: >90 dB to 18 GHz, >50 dB to 26.5 GHz
- Insertion loss: <0.25 dB to 2 GHz, <0.5 dB to 18 GHz, <1.25 dB to 26.5 GHz
- Low SWR and exceptional repeatability
- Long operational lifespan with high reliability
Applications
- RF and microwave test and measurement systems
- Broadband switching in communication equipment
- Automated test equipment (ATE) systems
- Cable and wireless telecommunications
Specifications
