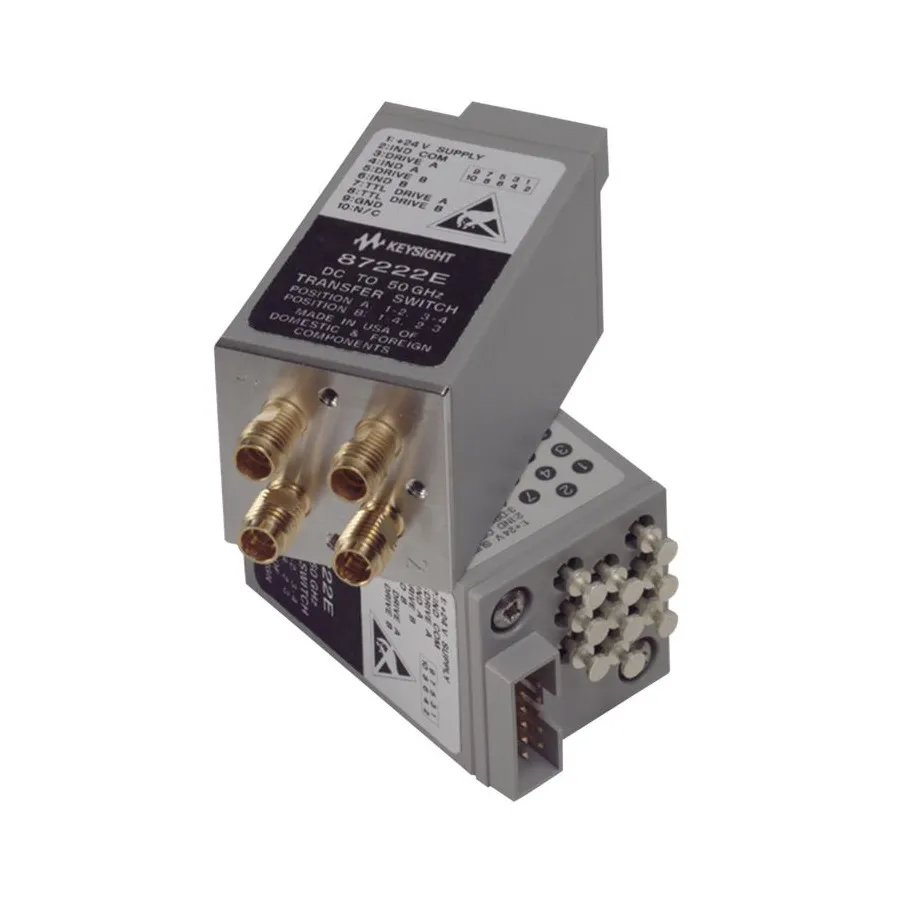

Keysight 87222E/100 4-Port Coaxial Transfer Switch
Request a quote
Keysight 87222E/100 4-port RF transfer switch with 50 GHz bandwidth, exceptional 0.03 dB repeatability, and >90 dB isolation for signal routing.
Product details
| Model | 87222E/100 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight 87222E/100 is a 4-port coaxial transfer switch with solder terminals and 10-pin DIP connector configuration. It delivers exceptional RF performance with low insertion loss and high isolation, making it suitable for demanding signal routing applications up to 50 GHz.
Key Features
- DC to 50 GHz frequency bandwidth
- Exceptional repeatability of 0.03 dB across 5 million operating cycles
- Excellent isolation: >90 dB at 26.5 GHz, >60 dB at 50 GHz
- Magnetic latching for reliable state retention
- TTL/5V CMOS compatible control signals
- Opto-electronic indicators and interrupt outputs
- Solder terminals and 10-pin DIP connector
Applications
- Signal routing and switching
- High-frequency test and measurement
- RF instrumentation systems
Specifications
