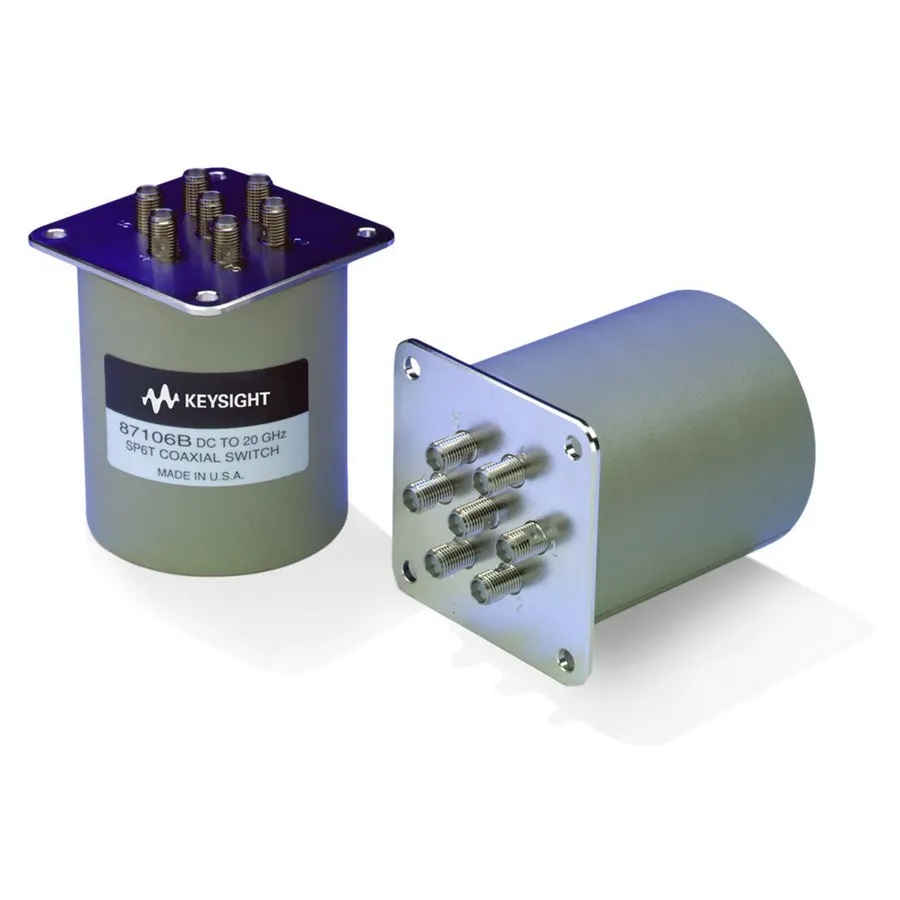

Keysight 87106B/024/161 Multiport Coaxial Switch
Request a quote
Keysight 87106B/024/161 is a SP6T multiport coaxial switch, DC to 20 GHz, with 0.03 dB repeatability and 10 million cycle operating life.
Product details
| Model | 87106B/024/161 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight 87106B/024/161 is a SP6T multiport coaxial switch providing DC to 20 GHz coverage for automated test and measurement, signal monitoring, and routing applications. Designed for systems requiring high repeatability and reliability, this switch features an operating life of 10 million cycles and guaranteed 0.03 dB repeatability up to 5 million cycles, reducing calibration costs and improving system uptime.
Key Features
- SP6T configuration with magnetic latching
- DC to 20 GHz frequency range
- Terminated ports
- Operating life of 10 million cycles
- Guaranteed repeatability of 0.03 dB up to 5 million cycles
- Excellent RF isolation, typically >90 dB to 26.5 GHz
- Opto-electronic indicators and interrupts
- TTL/5V CMOS compatible (optional)
Configuration Options
- (024) 24 VDC bias
- (161) 16 pin DIP socket and connector with 24 inch ribbon cable, bare wire interface
Applications
- Automated test systems (ATS)
- Signal monitoring and routing
- High-frequency RF measurement systems
