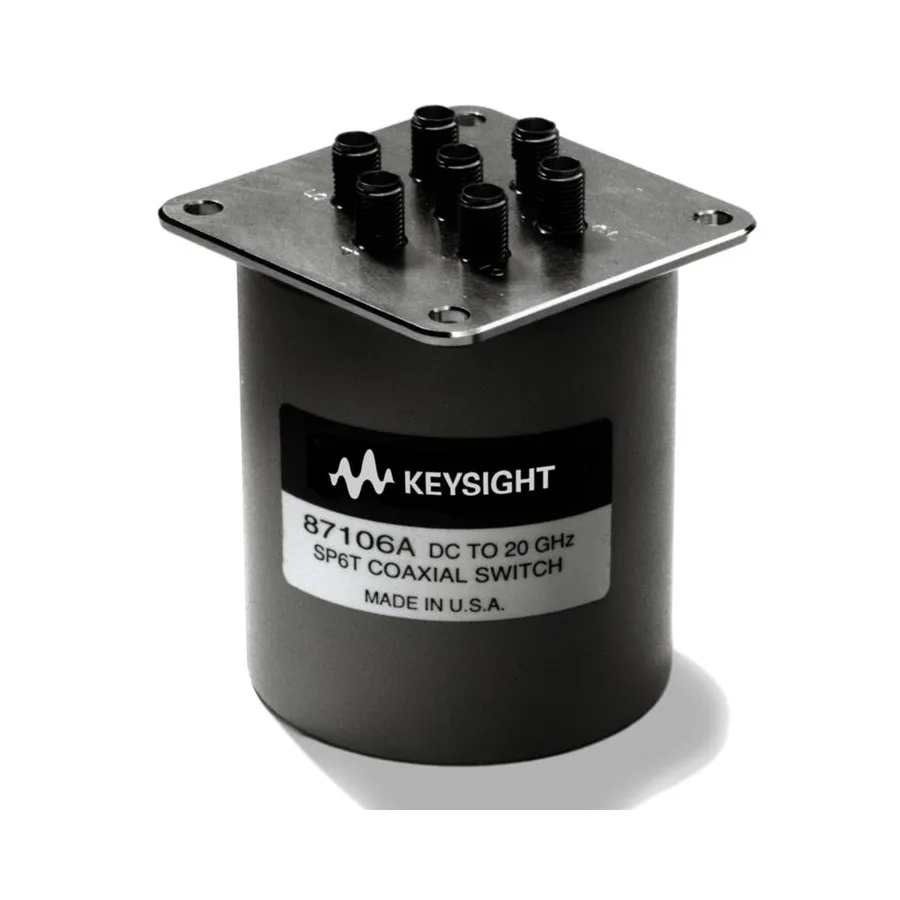

Keysight 87106A/024/161 Multiport Coaxial Switch
Request a quote
Keysight 87106A/024/161 is a SP6T multiport coaxial switch with 10 million cycle operating life, 0.03 dB repeatability, and excellent isolation for ATE.
Product details
| Model | 87106A/024/161 |
| Manufacturer | Keysight |
| Category | RF Switches |
| Availability | Made to order |
Description
Overview
The Keysight 87106A/024/161 is a SP6T terminated multiport coaxial switch for automated test and measurement applications. The 024 option specifies 24 VDC control voltage, while the 161 option includes a 16-pin DIP socket with connector and 24-inch ribbon cable for integration with test equipment. With 10 million cycles of operating life and guaranteed repeatability, this switch provides the reliability and performance required for high-accuracy ATE and signal routing systems.
Key Features
- SP6T configuration with magnetic latching
- Terminated ports for enhanced signal integrity
- Operating life of 10 million cycles
- Guaranteed repeatability of 0.03 dB up to 5 million cycles
- Excellent isolation, typically greater than 90 dB to 26.5 GHz
- Opto-electronic indicators and interrupts
- TTL/5V CMOS compatible (optional)
- DC to 4 GHz frequency range
- 24 VDC control (option 024)
- 16-pin DIP socket with 24-inch ribbon cable (option 161)
Applications
- Automated test equipment and systems
- Signal monitoring and routing
- Measurement and characterization systems
- High-reliability test applications
Specifications
