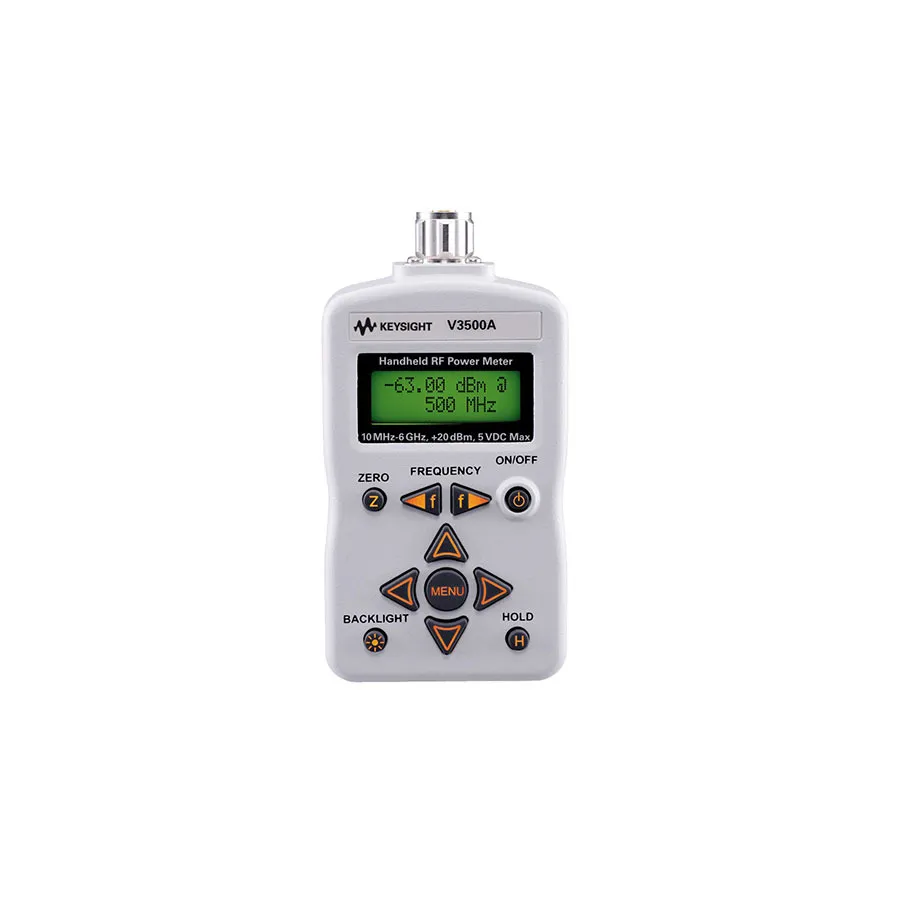

Keysight V3500A/PWR Handheld RF Power Meter

Overview

The Keysight V3500A/PWR is a compact, handheld RF power meter designed for field and manufacturing applications. With an absolute accuracy of ±0.21 dB, a broad frequency range of 10 MHz to 6 GHz, and a measurement range of -63 dBm to +20 dBm, this instrument is suitable for a wide variety of RF measurement applications. Its integrated power sensor eliminates the need to carry both an instrument and a separate sensor module, making it truly portable and easy to fit into your hand or toolkit.

Key Features

• Broad 10 MHz to 6 GHz frequency range for diverse applications
• Wide dynamic range of -63 dBm to +20 dBm
• Absolute accuracy of ±0.21 dB
• Integrated power sensor eliminates separate sensor requirement
• Internal power reference enables self-calibration
• Powered by batteries (two AA), optional AC-DC converter, or USB interface
• USB data-logging capability for trend and drift analysis
• Configurable display compensation for cable loss (offset up to ±99.99 dB)
• Flexible averaging and hold functions for variable signals
• Programmable backlight with auto-shutoff to maximize battery life
• Instrument state save and recall for repeated measurements

Applications

• Field RF power measurements in cellular and wireless networks
• Manufacturing and calibration environments
• Laboratory RF data logging and trend analysis
• Maintenance and troubleshooting of RF systems

Included Accessories

• USB cable for data transfer and power
• 5VDC external power adapter (included with /PWR variant)
• Optional belt loop holster or carrying case with shoulder strap
