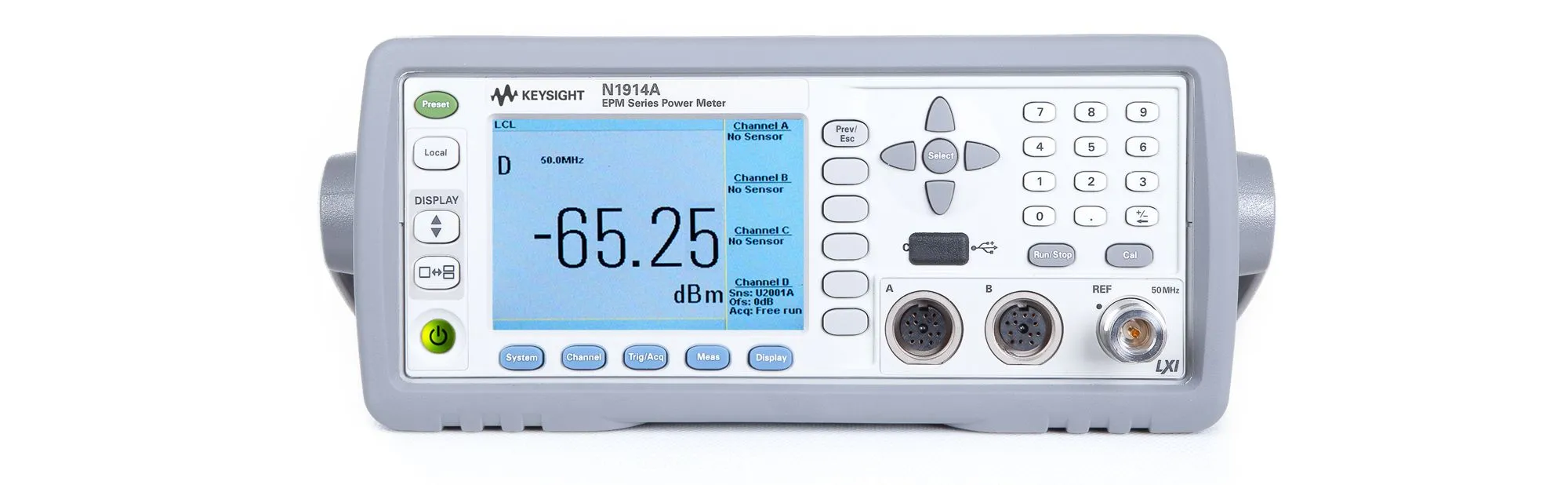

Keysight N1914A Dual Channel Power Meter
Request a quote
Keysight N1914A dual-channel RF power meter with -70 to +44 dBm range, 9 kHz to 110 GHz frequency coverage, and 400 readings/second measurement speed.
Product details
| Model | N1914A |
| Manufacturer | Keysight |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Keysight N1914A is a dual-channel average power meter designed for RF and microwave applications. It delivers repeatable and reliable measurements for bench and field use, featuring fast measurement speeds and an intuitive color LCD display for easy data analysis.
Key Features
- Dual-channel power measurement from -70 to +44 dBm (sensor dependent)
- Frequency coverage from 9 kHz to 110 GHz (sensor dependent)
- Fast measurement speed: up to 400 readings per second
- Color LCD display for straightforward data viewing and analysis
- Multiple connectivity options: GPIB, LAN (LXI-C), and USB
- Compatible with N8480, 8480, U2000 Series, and E-series power sensors
- Four-channel capability using optional U2000 Series USB power sensors
- Optional external trigger for automated frequency/power sweep measurements
- Includes BenchVue software license (BV0007B) for instrument control
Applications
- RF and microwave power measurement
- Bench and field testing
- Automated test system integration
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 85GHz < |
