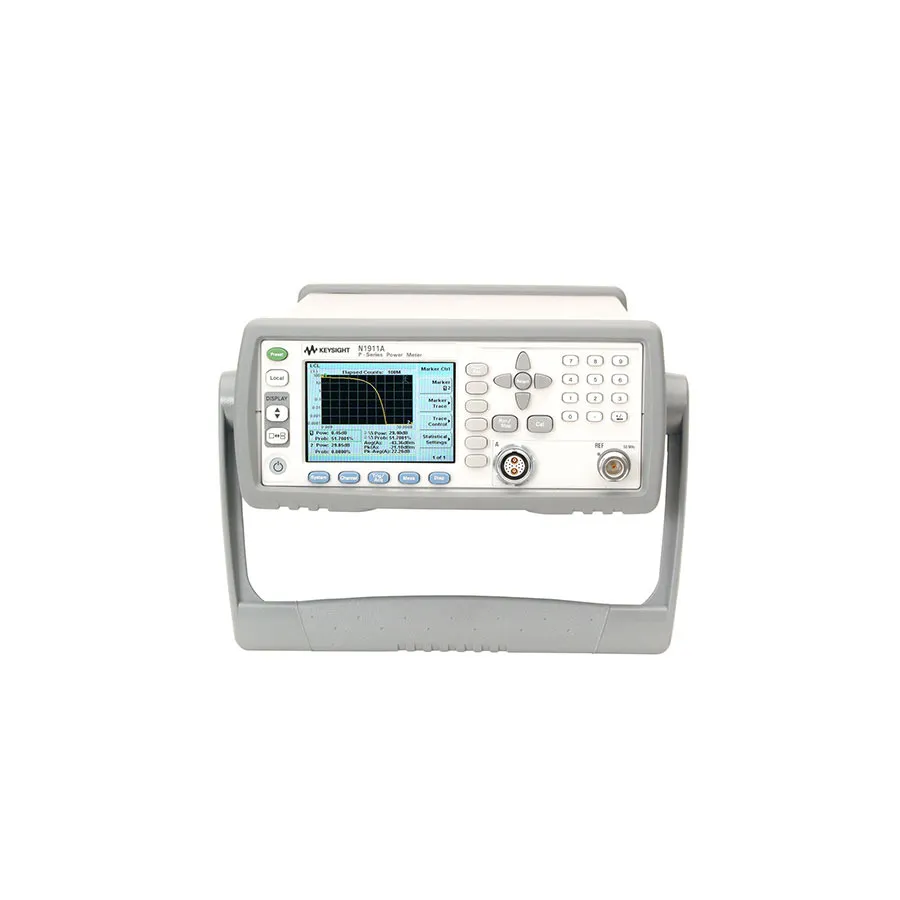

Keysight N1911A/101 Power Meter
Request a quote
Keysight N1911A/101 single-channel power meter with 30 MHz bandwidth, front panel connectors, and real-time pulse analysis for RF testing.
Product details
| Model | N1911A/101 |
| Manufacturer | Keysight |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Keysight N1911A/101 is a P-Series single-channel power meter featuring front panel sensor and power reference connectors. It provides accurate peak, average, and pulse measurements with integrated real-time capture and advanced analysis capabilities. The instrument is supported by BenchVue software for easy control, data logging, and measurement visualization.
Key Features
- Front panel sensor and power ref connectors for accessible connectivity
- 30 MHz video bandwidth with 100 Msample/s real-time capture
- Peak, average, peak-to-average ratio, rise time, fall time, and pulse width measurements
- 22 predefined measurement formats (WiMAX, DME, HSDPA, etc.)
- Internal zeroing and calibration capability
- LXI-C compliant with USB, LAN, and GPIB interfaces
- Integrated BenchVue software license for automated testing and visualization
- Statistical analysis with Complementary Cumulative Distribution Function (CCDF)
Key Specifications
- Measurement Frequency Range: 50 MHz to 40 GHz (with N192xA sensors)
- Power Range: -70 to +44 dBm (with standard sensors)
- Sensor Compatibility: N192xA, 8480 series, E-series, E932x power sensors
- Calibration Cycle: 2 years
Applications
- Pulse power and peak detection in RF systems
- Wireless signal testing and validation
- Integrated test rack systems with accessible front panel connectivity
- Production test environments for RF and microwave devices
Specifications
| Series | P-Series |
