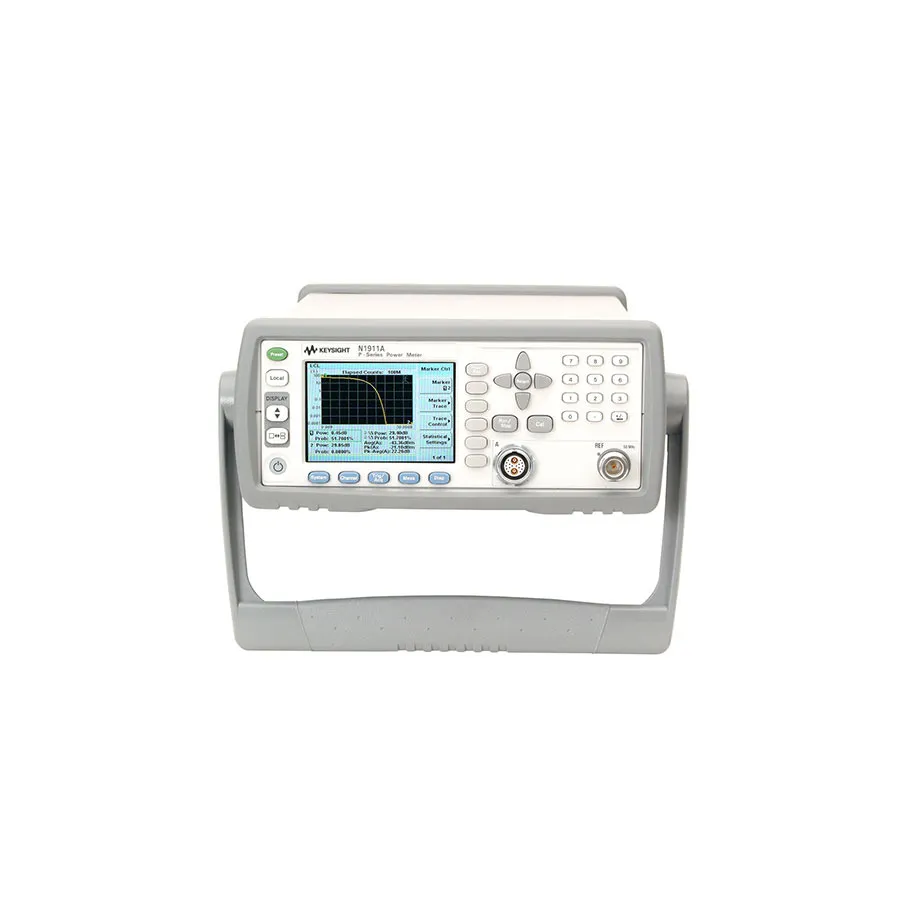

Keysight N1911A/003 Power Meter
Request a quote
Keysight N1911A/003 P-Series power meter with rear panel sensor and power reference connectors for flexible integration in test systems.
Product details
| Model | N1911A/003 |
| Manufacturer | Keysight |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Keysight N1911A/003 is a P-Series single-channel power meter configured with rear panel sensor and power reference connectors. This configuration enables flexible integration in laboratory and production test systems where rear-panel connectivity is preferred for space efficiency or system organization.
Key Features
- P-Series single-channel power measurement
- Rear panel sensor and power ref connectors
- 30 MHz video bandwidth
- Real-time single-shot capture at 100 Msample/s
- Peak, average, and pulse analysis measurements
- USB, LAN, and GPIB interfaces
- BenchVue software integration for data logging and visualization
- Internal zeroing and calibration capability
Applications
- Integrated rack-mounted test systems
- Production test environments with rear-panel wiring
- RF and microwave power measurement
Specifications
| Channels | 1 (Single Channel) |
| Video Bandwidth | 30 MHz |
| Measurement Frequency Range | 50 MHz to 40 GHz |
| Power Range | -70 to +44 dBm |
| Measurement Modes | Peak, average, peak-to-average ratio, rise time, fall time, pulse width |
| Data Capture Rate | 100 Msample/s (single-shot real-time) |
| Interfaces | USB, LAN, GPIB |
| Sensor Compatibility | N192xA (P-Series), 8480 series, E-series, E932x |
| Calibration Cycle | 2 years |
