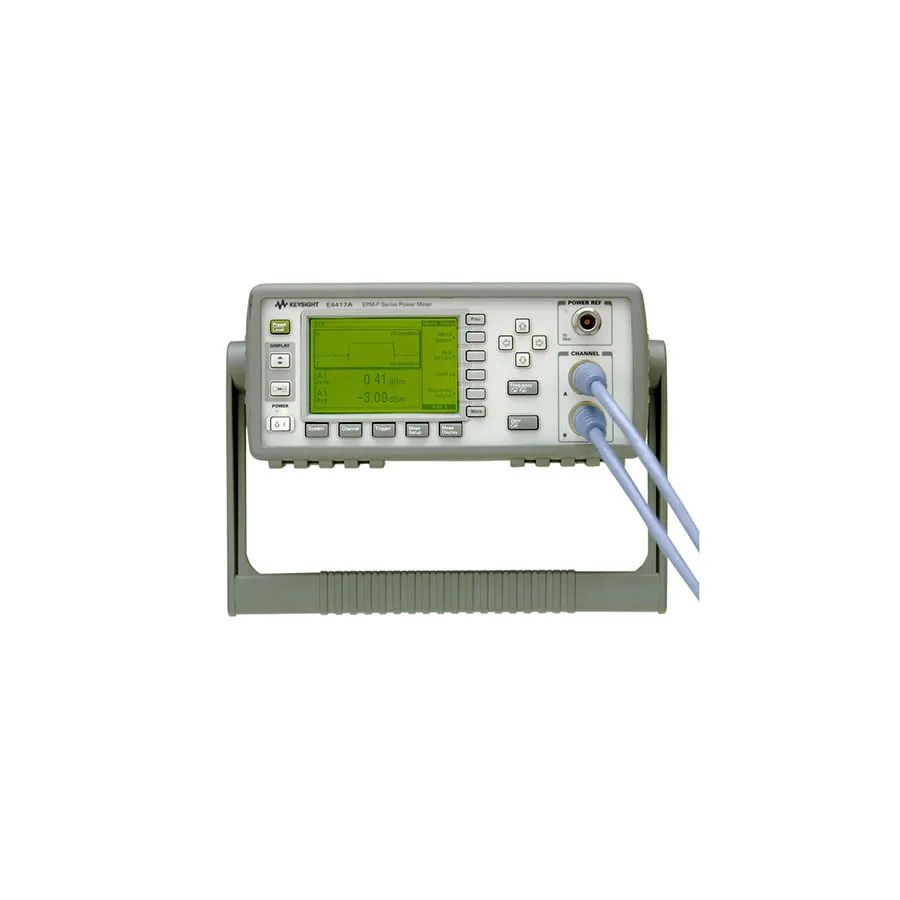

Keysight E4417A/005 RF Power Meter
Request a quote
Keysight E4417A/005 dual-channel RF power meter with 20 Ms/s sampling rate, time-gated and free-run measurements, compatible with 8480 and E-Series power sensors.
Product details
| Model | E4417A/005 |
| Manufacturer | Keysight |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Keysight E4417A/005 is a dual-channel RF power meter designed for peak, average, peak-to-average ratio, and time-gated measurements. It operates at frequencies from 100 kHz to 110 GHz and includes E9288A power sensor cables (5-ft length) for immediate operation.
Key Features
- Dual input channels for simultaneous measurements
- 20 Msample/s sampling rate for continuous and single-shot measurements on wide-bandwidth signals
- Time-gated and free-run power measurement modes
- Compatible with all 8480 and E-Series power sensors
- Up to 1,000 corrected readings per second over GPIB
- Pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth, IS-95 CDMA, W-CDMA, CDMA 2000)
- Large display options: 1-line or 4-line numeric, trace, or analog display
- Free Analyzer Software for pulse and statistical analysis
Applications
- Wireless signal testing and analysis
- Time-gated power measurement systems
- Peak and average power evaluation
Included Accessories
- E9288A power sensor cables, 5-ft (1.5m) length
- Free Analyzer Software
Specifications
| Series | P Series |
