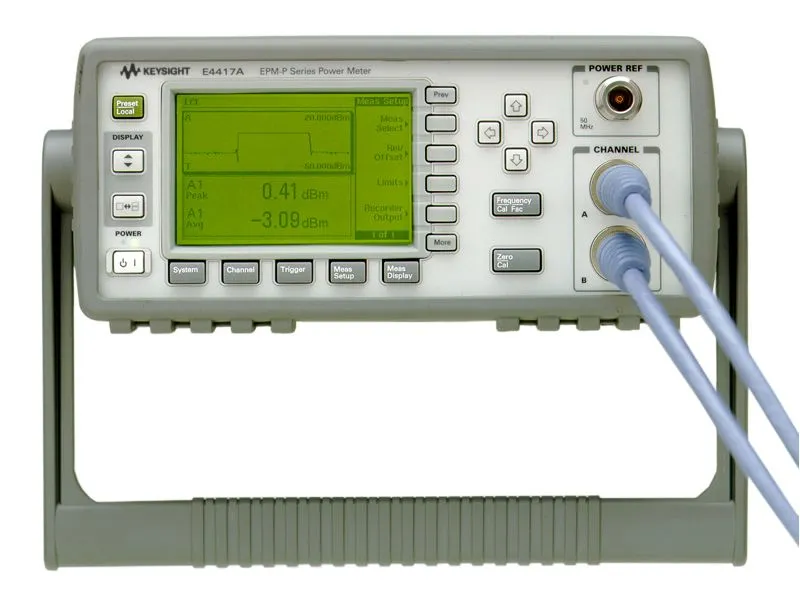

Keysight E4417A EPM-P Series Power Meter
Request a quote
Keysight E4417A is a dual-channel EPM-P series power meter with 20 Msample/s sampling rate for peak, average, and time-gated measurements with support for 8 wireless configurations.
Product details
| Model | E4417A |
| Manufacturer | Keysight |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Keysight E4417A is a dual-channel EPM-P series power meter designed for peak, average, peak-to-average ratio, and time-gated power measurements. With a sampling rate of 20 Msample/s, it provides accurate measurements on wide bandwidth signals and supports 8 pre-defined wireless communication configurations for comprehensive RF system characterization.
Key Features
- Dual-channel input capability
- 20 Msample/s sampling rate for reliable continuous and single shot measurements
- Peak, average, peak-to-average ratio, and time-gated power measurements
- 8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth, IS-95 CDMA, W-CDMA, cdma2000)
- Power measurement range -70 to +44 dBm (sensor dependent)
- Compatible with all 8480 and E-Series power sensors
- GPIB and RS-232/422 interfaces for system integration
- Free Analyzer Software for pulse and statistical analysis
Included Accessories
- E9288A Power Sensor Cable, 1.5 meters (5 feet), two included
- Power cord, 2.4 meters (7.5 feet) with destination-specific plug
- Product CD-ROM with User's Guide and Programming Guide in multiple languages
Applications
- Multi-channel RF power measurement and validation
- Dual-path transmitter testing
- Complex modulation analysis
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 85GHz < |
