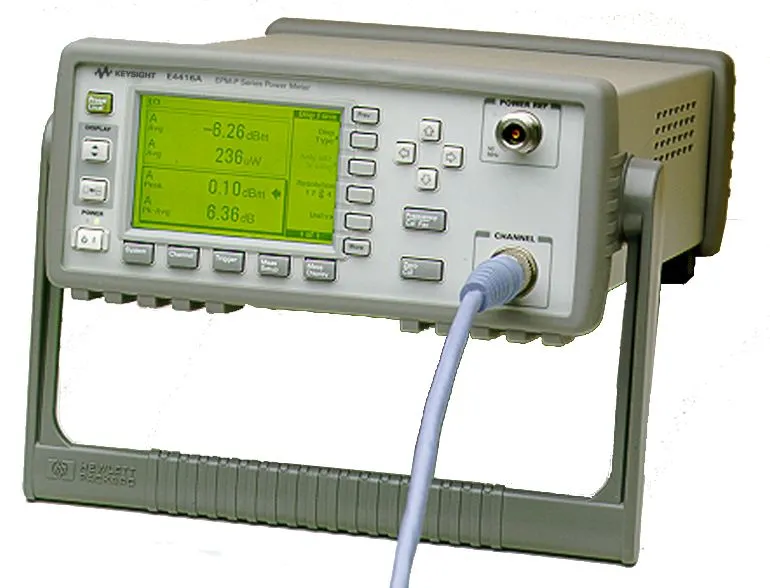

Keysight E4416A EPM-P Series Power Meter
Request a quote
Keysight E4416A is a single-channel EPM-P series power meter with 20 Msample/s sampling rate for peak, average, and time-gated power measurements on wide bandwidth RF signals.
Product details
| Model | E4416A |
| Manufacturer | Keysight |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Keysight E4416A is a single-channel EPM-P series power meter designed for peak, average, peak-to-average ratio, and time-gated power measurements. It offers a high sampling rate of 20 Msample/s for accurate measurements on wide bandwidth signals, making it ideal for modern wireless communication systems.
Key Features
- Single-channel input with 20 Msample/s sampling rate
- Peak, average, peak-to-average ratio, and time-gated power measurements
- 8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth, IS-95 CDMA, W-CDMA, cdma2000)
- Compatible with all 8480 and E-Series power sensors
- Up to 1,000 corrected readings per second over GPIB
- Easy-to-read display with large 1-line or 4-line numeric display, trace display, or analog display
- Free Analyzer Software for complete pulse and statistical analysis
Applications
- Wireless communication system testing and validation
- Pulse power measurement and analysis
- RF component characterization
Specifications
| Channel/Port Count | 1 |
| High Frequency (range) | 85GHz < |
