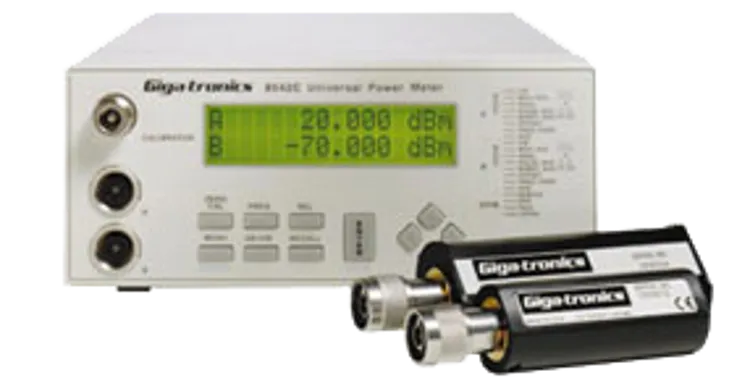

Gigatronics 8542C Universal Power Meter
Request a quote
Gigatronics 8542C is a dual-input RF power meter covering 100 kHz–40 GHz with ±0.02 dB accuracy, up to 4000 readings/second in buffered mode.
Product details
| Model | 8542C |
| Manufacturer | Gigatronics |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Gigatronics 8542C is a dual-input universal RF power meter combining accuracy, speed, and measurement range for complex modulated signals. Built-in power sweep calibration and frequency calibration provide unequalled measurement accuracy. The meter measures CW, peak, and true average power of signals used in EW, radar, and communications systems with exceptional speed and dynamic range.
Key Features
- Dual-input design with 2 sensor cables included
- Frequency range: 100 kHz to 40 GHz (depends on sensor)
- Power range: -70 to +47 dBm (depends on sensor)
- CW power measurement with 90 dB dynamic range
- Modulation power measurement: 87 dB CW, 60–80 dB modulation
- Peak power measurement: 50 dB CW, 47 dB peak
- Linearity: ±0.02 dB
- 500 readings per second over GPIB
- Fast Buffered Mode: up to 4000 readings per second
- Optional Time Gating for custom measurement windows
Applications
- Electronic Warfare (EW) signal testing and measurement
- Radar system characterization
- Communications system verification
- TDMA, GSM, and CDMA signal analysis
- High-volume manufacturing throughput
Included Accessories
- 2 detachable sensor cables
- Power cord
- Manual
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 20GHz <= 50GHz |
