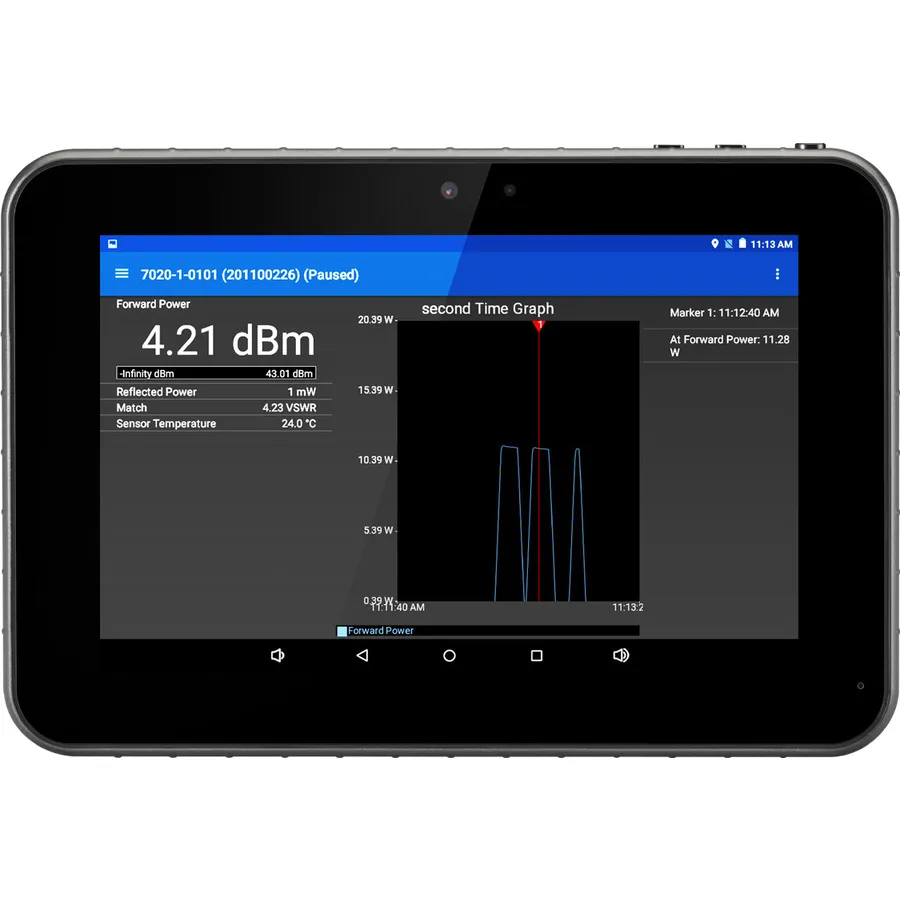

Bird 5000-NG Digital RF Power Meter
Request a quote
Bird 5000-NG Digital RF Power Meter with 8-inch touchscreen display, 2 MHz to 6 GHz range, 48-hour battery life, data logging, and automatic sensor detection.
Product details
| Model | 5000-NG |
| Manufacturer | Bird |
| Category | RF Power Meters |
| Availability | Made to order |
Description
Overview
The Bird 5000-NG Digital RF Power Meter is a portable field instrument for measuring RF power using external power sensors (not included). It features an 8-inch color touchscreen display readable in direct sunlight, automatic sensor detection for over 12 supported Bird field sensors, and up to 48 hours of battery life for extended field use.
Key Features
- 8-inch color touchscreen display with sunlight readability
- Frequency range 2 MHz to 6 GHz (with external power sensors)
- Automatic sensor detection compatible with 12+ Bird field sensors
- 48-hour battery life with most sensors; 24-hour life with 5012 Series or 7022 sensors
- 5.0 Megapixel camera for documenting equipment serial numbers and models
- Data logging with numerical and graphical display modes
- 16 GB internal storage
- Wireless connectivity via USB, WiFi, or Bluetooth
- Typical 6-hour charge time with included AC/DC charger
Measurements
- True Average Power (Forward and Reflected)
- VSWR, Return Loss, rho, Match Efficiency
- Peak Power, Peak to Average Ratio, Crest Factor, PEP
- Burst and Burst Average Power
- CDF, CCDF, Confidence %
- IEEE 194 Pulse Parameters
- Sensor Temperature
Included Accessories
- 5V USB charger with US/International plugs
- 6 ft USB SeaLatch Cable
- 6 ft USB Cable
- Premium carrying case
- Stylus
- User manual
Specifications
| Display | Touch Screen |
| Frequency Range | 2 MHz-6 GHz |
| Interface | USB |
