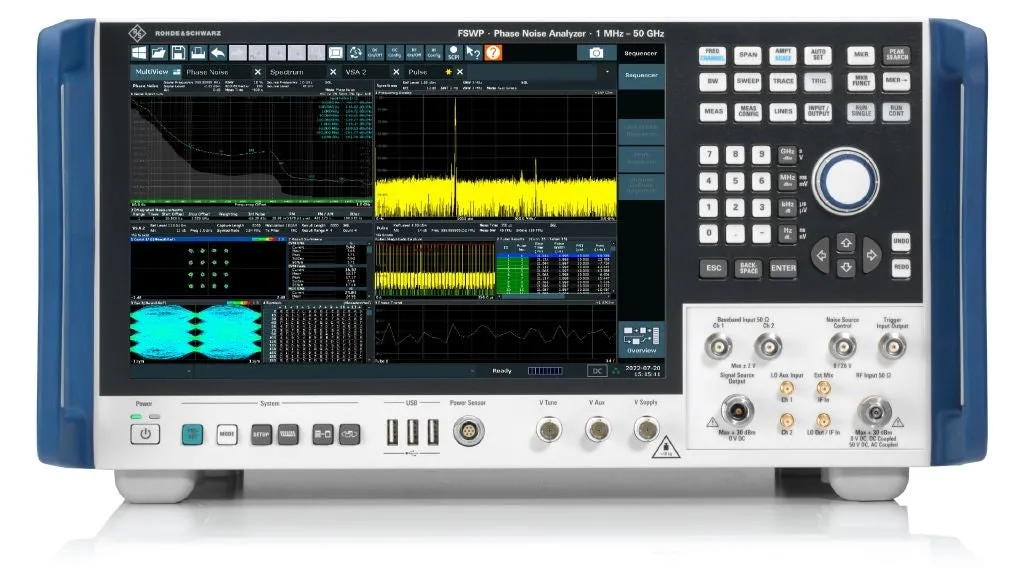

Rohde & Schwarz FSWP8 Phase Noise Analyzer and VCO Tester
Request a quote
Rohde & Schwarz FSWP8 phase noise analyzer and VCO tester with 1 MHz to 8 GHz frequency range, phase noise sensitivity below -166 dBc (1 Hz).
Product details
| Model | FSWP8 (1322.8003.09) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSWP8 is a phase noise analyzer and VCO tester designed for precise characterization of oscillators and voltage-controlled oscillators up to 8 GHz. Using extremely low-noise internal sources with cross-correlation technology, it delivers high sensitivity for phase noise measurements, enabling characterization of even highly stable sources in seconds.
Key Features
- Frequency range: 1 MHz to 8 GHz
- Phase noise sensitivity below -166 dBc (1 Hz) at 1 GHz with 10 kHz offset
- Simultaneous amplitude noise and phase noise measurement
- Pulsed signal measurement capability
- Internal sources for residual phase noise characterization, including pulsed signals
- Wide dynamic range with 156 dBm (1 Hz) DANL and 25 dBm typical TOI
- Maximum analysis bandwidth of 320 MHz
- Integrated signal and spectrum analysis capabilities
- 12.1-inch touchscreen display for simultaneous viewing of multiple measurement windows
- Low-noise internal DC sources for VCO characterization
Applications
- Oscillator and VCO characterization and testing
- Phase noise analysis and measurement
- Radar system development and validation
- Communications equipment evaluation
- Signal integrity and spectral analysis
Specifications
| Frequency Range | 1 MHz to 8 GHz |
| Phase Noise Sensitivity | < -166 dBc (1 Hz) at 1 GHz, 10 kHz offset |
| Maximum Analysis Bandwidth | 320 MHz |
| Display | 12.1-inch touchscreen |
| DANL | 156 dBm (1 Hz) |
| TOI | typ. 25 dBm |
| Measurement Uncertainty | < 0.2 dB up to 3.6 GHz, < 0.3 dB up to 8 GHz |
