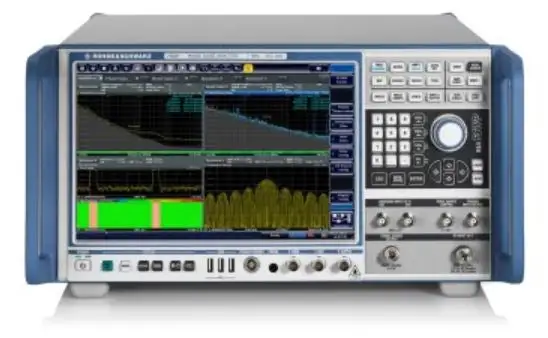

Rohde & Schwarz FSWP8 Phase Noise Analyzer and VCO Tester
Request a quote
Rohde & Schwarz FSWP8 phase noise analyzer and VCO tester with 1 MHz to 8 GHz frequency range, phase noise sensitivity below -166 dBc (1 Hz).
Product details
| Model | FSWP8 (1322.8003.08) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSWP8 is a phase noise analyzer and VCO tester designed for precise characterization of oscillators and voltage-controlled oscillators up to 8 GHz. Using extremely low-noise internal sources with cross-correlation technology, it delivers high sensitivity for phase noise measurements, enabling characterization of even highly stable sources in seconds.
Key Features
- Frequency range: 1 MHz to 8 GHz
- Phase noise sensitivity below -166 dBc (1 Hz) at 1 GHz with 10 kHz offset
- Simultaneous amplitude noise and phase noise measurement
- Pulsed signal measurement capability
- Internal sources for measuring additive phase noise on pulsed signals
- Wide dynamic range with DANL of 156 dBm (1 Hz) and high TOI of typ. 25 dBm
- Maximum analysis bandwidth of 320 MHz
- Measurement uncertainty less than 0.2 dB up to 3.6 GHz and less than 0.3 dB up to 8 GHz
- 12.1-inch touchscreen display for simultaneous measurement window viewing
- Integrated signal and spectrum analysis capabilities
- Low-noise internal DC sources for VCO characterization
Applications
- Oscillator and VCO characterization and testing
- Phase noise analysis and measurement
- Radar system development and testing
- Communications equipment evaluation
- Signal integrity analysis
Specifications
| FSWP8 | 1322.8003.081 MHz - 8 GHz< –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) 320 MHzPhase noise analyzer and VCO tester |
