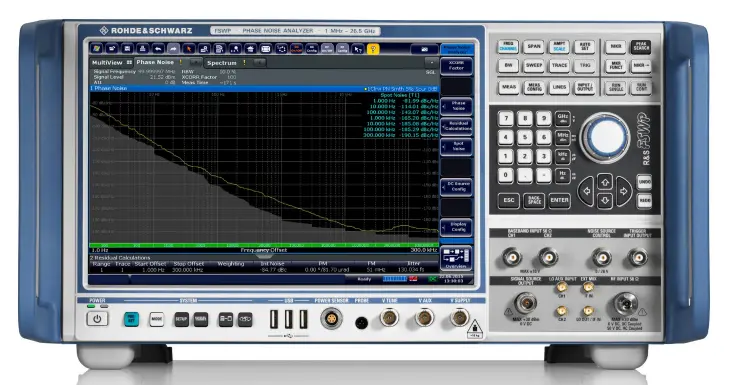

Rohde & Schwarz FSWP26 Phase Noise Analyzer and VCO Tester
Request a quote
Rohde & Schwarz FSWP26 phase noise analyzer with ultra-high sensitivity covering 1 MHz to 26.5 GHz, cross-correlation technology, and VCO testing capabilities.
Product details
| Model | FSWP26 (1322.8003.26) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSWP26 is a specialized phase noise analyzer and VCO tester combining extremely low-noise internal sources with cross-correlation technology. It delivers exceptionally high sensitivity for phase noise measurements, enabling rapid characterization of highly stable frequency sources such as those used in radar and communications systems. The instrument provides simultaneous amplitude and phase noise measurement capabilities with optional support for pulsed signals.
Key Features
- Frequency range: 1 MHz to 26.5 GHz
- Ultra-high sensitivity phase noise: typ. 172 dBc (1 Hz) at 1 GHz, 10 kHz offset
- Simultaneous amplitude and phase noise measurement
- Phase noise measurement on pulsed signals
- Additive phase noise measurement with internal source
- Wide dynamic range: 156 dBm (1 Hz) DANL, 25 dBm TOI (typical)
- Signal analysis bandwidth: 80 MHz
- 12.1" touchscreen with multi-window capability
- Low-noise internal DC sources for VCO testing
- Total measurement uncertainty: <0.2 dB (up to 3.6 GHz), <0.3 dB (up to 8 GHz)
Applications
- VCO characterization and testing
- Oscillator development and quality assessment
- Radar frequency source validation
- Communications system frequency stability testing
- Pulsed signal phase noise analysis
- Additive phase noise measurement
Specifications
| FSWP26 | 1322.8003.261 MHz - 26.5 GHz< –166 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) 320 MHzPhase noise analyzer and VCO tester |
