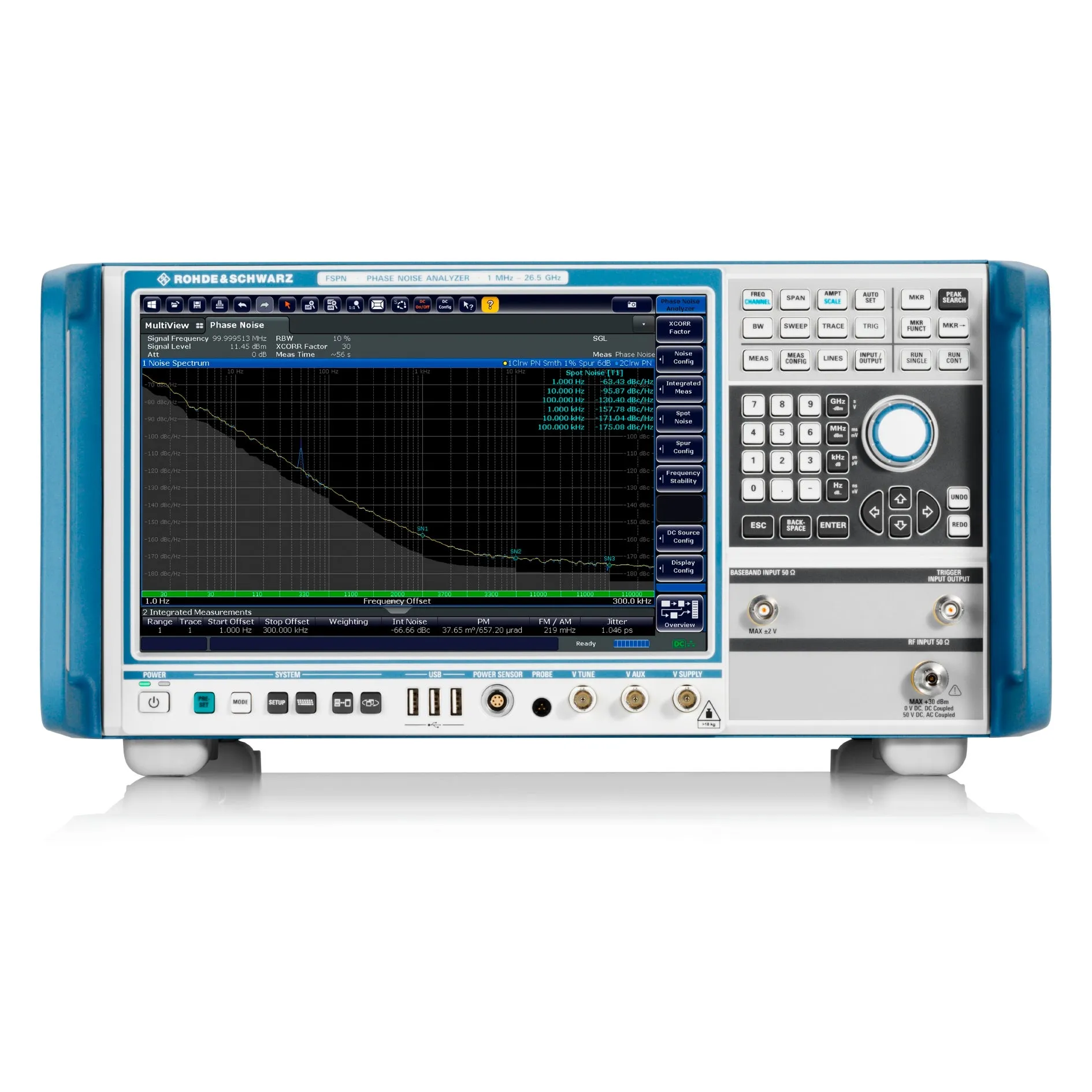

Rohde & Schwarz FSPN8 Phase Noise Analyzer and VCO Tester
Rohde & Schwarz FSPN8 is a high-sensitivity phase noise analyzer and VCO tester with frequency range 1 MHz to 8 GHz and phase noise sensitivity below –163 dBc (1 Hz).
Product details
| Model | FSPN8 (1322.8003.06) |
| Manufacturer | Rohde & Schwarz |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSPN8 is a phase noise analyzer and VCO tester designed for highly sensitive measurements of synthesizers, VCOs, OCXOs, and DROs. Equipped with dual low-noise synthesizers and real-time cross-correlation engine, it delivers exceptional measurement sensitivity with minimal correlations needed for production measurements of high-quality oscillators.
The instrument combines extreme measurement speed with ease of use, making it suitable for both R&D characterization of the most sensitive commercially available synthesizers and oscillators, and for efficient production line testing.
Key Features
- Frequency range: 1 MHz to 8 GHz
- Very high sensitivity: <–163 dBc (1 Hz) at 1 GHz carrier, 10 kHz offset
- Dual synthesizers with real-time cross-correlation in base unit
- Simultaneous measurement of phase noise and amplitude noise
- Hardware-implemented cross-correlation for high measurement speed
- Extremely low-noise internal DC sources for VCO characterization
- Harmonics suppression measurement and enhanced tuning voltage capabilities
- Transient response analysis up to 8 GHz wideband
Applications
- Phase noise characterization of synthesizers and VCOs in R&D
- Production testing and quality assurance of oscillators
- Radar and satellite application testing
- VCO development and tuning optimization
Included Accessories
- Power Cable
- Quick Start Guide
Specifications
| Measurement Speed taken to its Limit | Save time and multiply your measurement throughput in production Speed up the development of your devices |
| Phase Noise Measurements with Highest Sensitivity | Cross-correlation for improved phase noise sensitivity Display multiple measurements in parallel |
| Fastest VCO Characterization | Harmonics suppression measurement Enhanced tuning voltage capabilities |
| Transient Response Analysis | Up to 8 GHz wideband analysis for frequency and phase measurements in time domain Trigger capabilities for reproducible measurements on phase or frequency deviation |
| Features | Parameters |
| Display | 30.7 cm (12.1"), WXGA color touchscreen |
| Resolution | 1280 × 800 pixel (WXGA resolution) |
| Pixel Failure Rate | < 1 × 10⁻⁵ |
| Data Storage Internal (Standard) | solid state disk ≥ 128 Gbyte |
| Data Storage External | supports USB 2.0 compatible memory devices |
| Operating Temperature Range | +5 °C to +40 °C |
| Permissible Temperature Range | 0 °C to +55 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Climatic Loading (without condensation) | +40 °C at 90 % rel. humidity In line with EN 60068-2-30 |
| EMC | IEC/EN 61326-1 ᴬ ᴮ IEC/EN 61326-2-1 CISPR 11/EN 55011 ᴬ IEC/EN 61000-3-2 IEC/EN 61000-3-3 |
| Recommended Calibration Interval | 1 Year |
| Input Voltage Range (AC) | 100 V to 240 V |
| Supply Frequency (AC) | 50 Hz to 60 Hz/400 Hz |
| Max. Input Current | 7.3 A to 4.6 A (100 V to 240 V) |
| Safety | In line with: IEC 61010-1 EN 61010-1 UL 61010-1 CAN/CSA-C22.2 No. 61010-1 |
| Test Marks | VDE ᴄCSAᴜs |
| Weight | FSPN8: 20.5 kg (45.2 lb) FSPN26: 22 kg (48.5 lb) |
| FSPN8 | 1322.8003.06Phase Noise Analyzer and VCO Tester, 1 MHz to 8 GHz Included Accessories: Power Cable Quick Start Guide |
