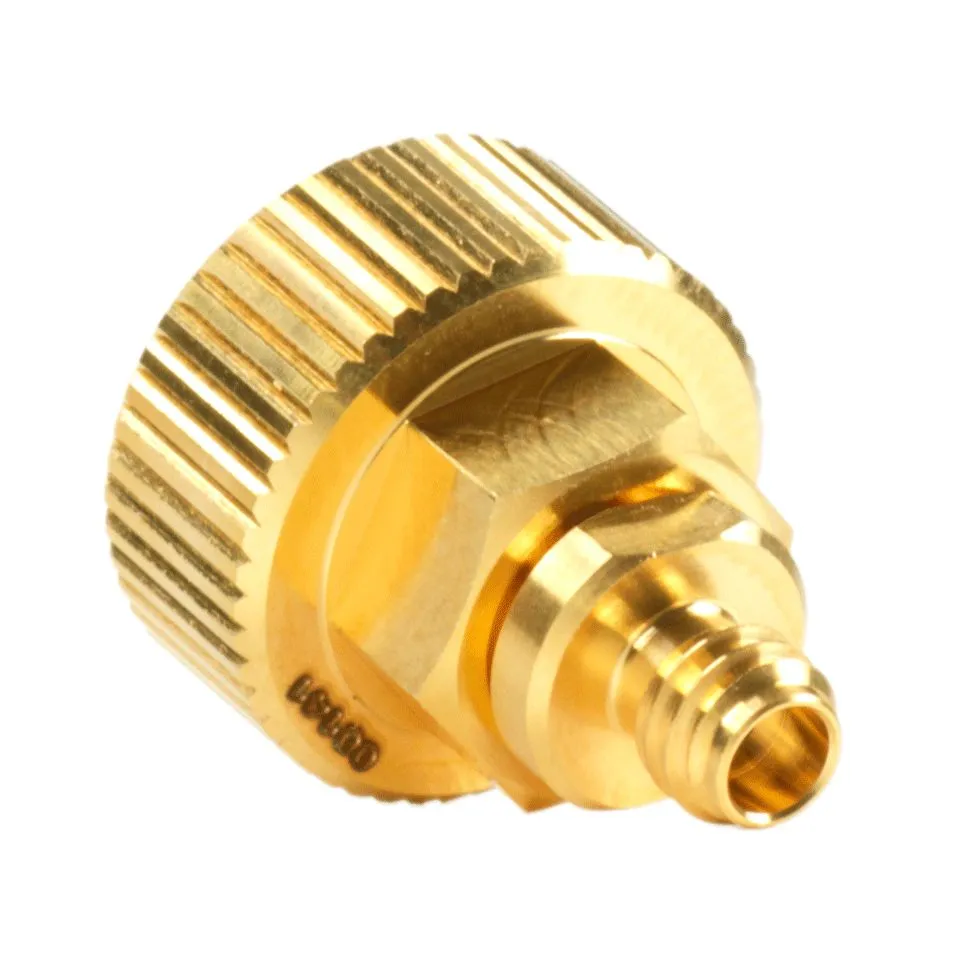

Keysight Y1900B 1.0mm Coax Adapter
Request a quote
Keysight Y1900B precision 1.0mm coax-to-ruggedized-coax adapter for measurements to 120GHz with low insertion loss and high return loss.
Product details
| Model | Y1900B |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight Y1900B is a precision 1.0 millimeter coax-to-ruggedized-coax adapter designed for high-frequency coaxial measurements up to 120 GHz. It provides a simple and reliable connection method for measuring 50-ohm coaxial components across a wide frequency range from DC to 120 GHz.
Key Features
- Measurement accuracy and versatility for 1.0 millimeter test systems
- Ruggedized connector on one end for durability in field use
- Ease of use for both on-wafer and coaxial measurements
- Insertion loss: 0.5 dB @ 110 GHz, 0.7 dB @ 120 GHz
- Return loss: 14 dB (75 to 120 GHz)
Specifications
- Connector Type: 1.0 mm (f) to ruggedized 1.0 mm (f)
- Frequency Range: DC to 120 GHz
- Characteristic Impedance: 50 ohms
- Maximum CW Power: 10 W
- Repeatability: -35 dB
Specifications
| Y1900B | Adapter, 1.0 mm (f) to ruggedized 1.0 mm (f), DC to 120 GHz |
