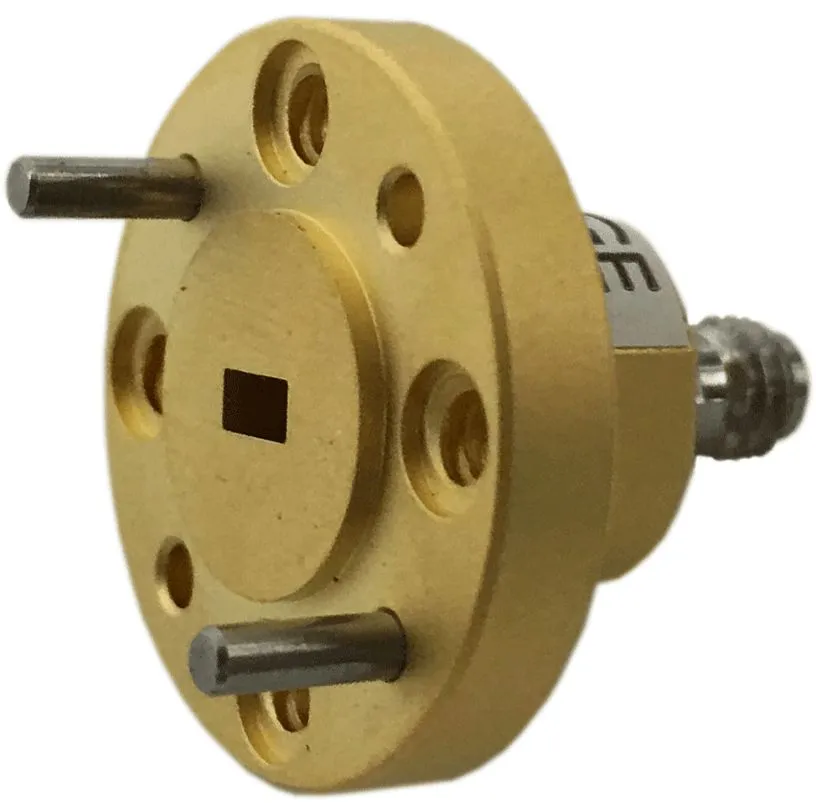

Keysight W281CS In-line W-band Waveguide Adapter
Request a quote
Keysight W281CS in-line 1.0 mm to W-band (75–110 GHz) waveguide adapter with 0.7 dB insertion loss and 16 dB return loss.
Product details
| Model | W281CS |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight W281CS is an in-line 1.0 mm female to WR-10 waveguide adapter for W-band measurements. It provides a straightforward connection between coaxial instruments and waveguide test devices operating in the 75 to 110 GHz frequency range.
Key Features
- Frequency range: 75 to 110 GHz
- In-line configuration for direct integration
- Insertion loss: 0.7 dB (typical)
- Return loss: 16 dB (typical)
- Maximum CW power: 10 W
Applications
- W-band test and measurement systems
- Waveguide device characterization and testing
- RF and microwave measurement systems
Specifications
| W281CS | 1.0 mm (f) to W-band waveguide adapter, In-line |
