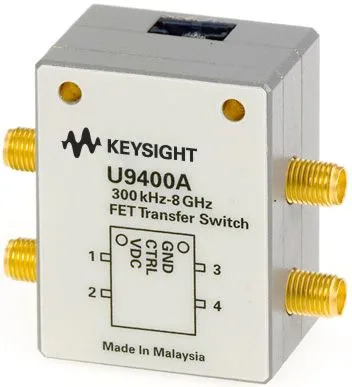

Keysight U9400A FET Transfer Switch
Request a quote
Keysight U9400A is a solid state FET transfer switch with 300 kHz to 8 GHz coverage, >100 dB isolation, <3.5 dB insertion loss, and <5 mVpp video leakage.
Product details
| Model | U9400A |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight U9400A is a solid state FET transfer switch designed for RF and microwave switching applications requiring exceptional isolation, fast switching speed, and minimal video leakage. Its broad frequency coverage from 300 kHz to 8 GHz, combined with industry-leading settling time, makes it particularly well-suited for testing sensitive RFIC components and demanding high-frequency test systems.
Key Features
- Exceptionally high port-to-port isolation of >100 dB to minimize crosstalk
- Broad operating frequency range from 300 kHz to 8 GHz
- Industry-leading settling time of 350 µs for improved throughput
- Very low video leakage of <5 mVpp reduces risk to sensitive RFIC components
- Integrated TTL-compatible driver eliminates external driver requirements
- Fast switching speed of 4 µs rise/fall time (typical)
Applications
- Sensitive RFIC component testing
- RF and microwave switching systems
- Instrumentation and signal routing
- High-isolation switching applications
Specifications
| Frequency Range | 300 kHz to 8 GHz300 kHz to 18 GHz |
| Insertion Loss | < 3.0 dB (300 kHz to 4 GHz < 3.5 dB (4 to 8 GHz) < 5.0 dB (300 kHz to 8 GHz) < 6.5 dB (8 to 18 GHz) |
| Isolation | > 100 dB> 90 dB |
| Return Loss (ON Ports) | > 15 dB> 10 dB |
| Switching Speed * (typical) | 4/0.5 µs5/1 µs |
| Settling Time (typical) | 350 µs350 µs |
| Video Leakage (typical) | 90 mVpp90 mVpp |
| Characteristic Impedance (nominal) | 50 Ω50 Ω |
| Connectors | SMA (f)SMA (f) |
| Model Number | Description |
| U9400A | 8 GHz solid state FET transfer switch |
