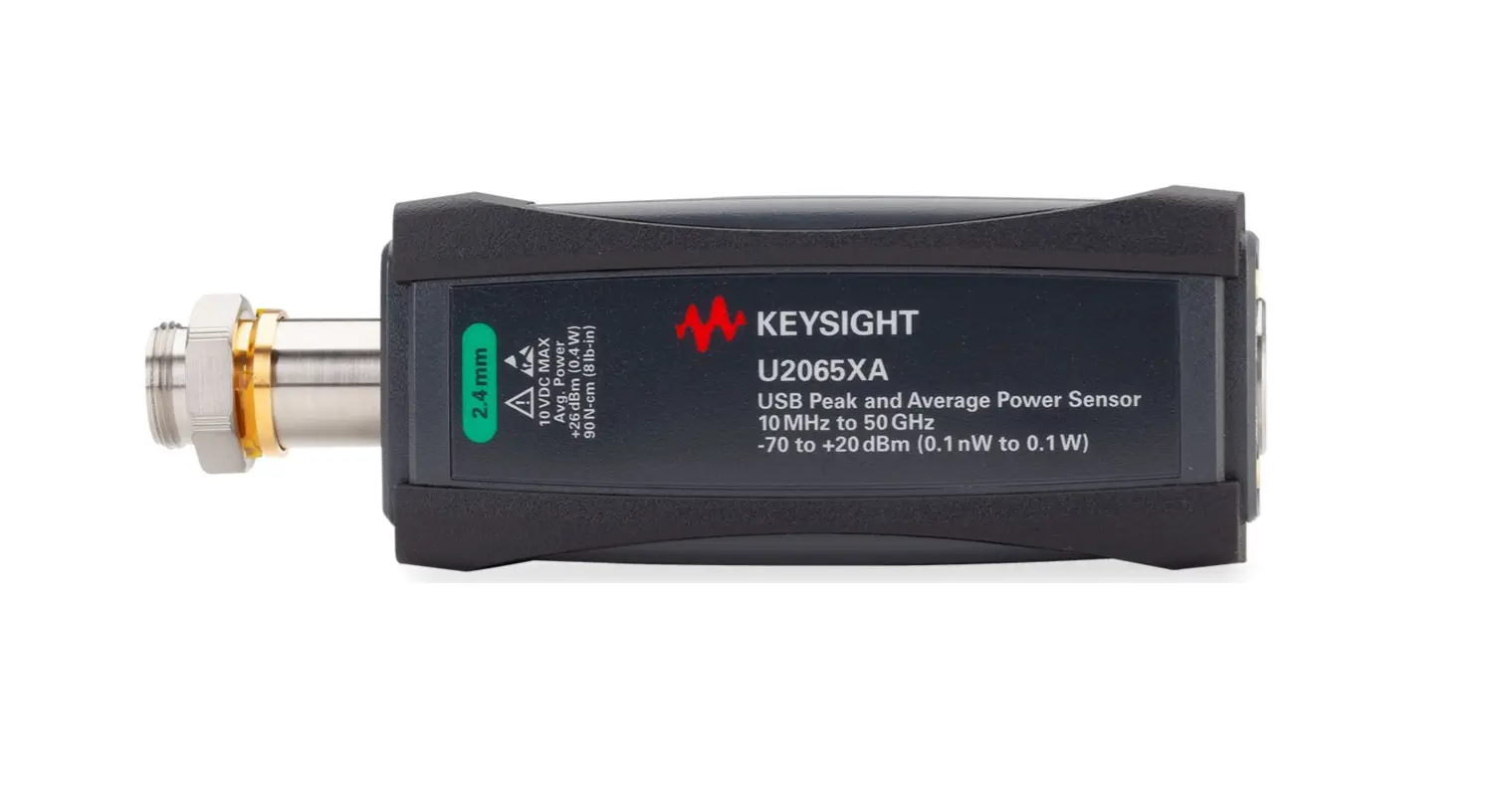

Keysight U2065XA USB Peak and Average Power Sensor
Request a quote
Keysight U2065XA is a USB RF power sensor covering 10 MHz to 50 GHz with -70 to +26 dBm dynamic range and 50,000 readings/sec measurement speed.
Product details
| Model | U2065XA |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight U2065XA is a USB-based RF power sensor for fast and accurate measurement of modulated signals. With a frequency range of 10 MHz to 50 GHz and wide dynamic range of -70 to +26 dBm, it delivers precise peak and average power measurements suitable for laboratory and manufacturing test applications.
Key Features
- Frequency range: 10 MHz to 50 GHz
- USB connectivity with wide dynamic range of -70 to +26 dBm for small signal measurements
- Fast real-time measurement of 50,000 readings/sec
- Variable sampling rate up to 1M samples/sec with 1M samples data storage
- Zero dead time measurement ensures every continuous pulse is captured
- Average mode with time-selectivity function for full dynamic range measurements
- Internal zero and automatic calibration reduces measurement uncertainty
- Included BenchVue software license (BV0007B) for data logging and visualization
Applications
- RF and microwave signal measurement
- Modulated signal analysis
- Manufacturing throughput testing
- Laboratory power measurement
Specifications
| U2065XA | USB wide dynamic range peak and average power sensor, 10 MHz to 50 GHz |
