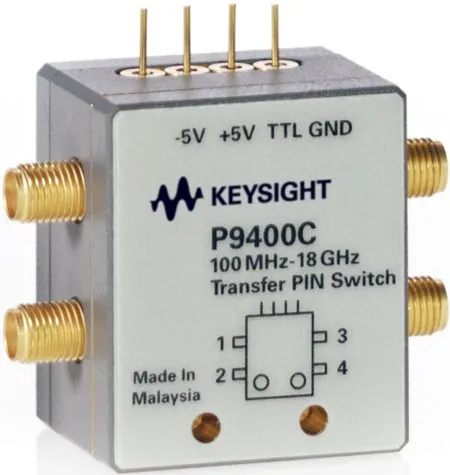

Keysight P9400C Solid State PIN Diode Transfer Switch
Request a quote
Keysight P9400C is a PIN solid-state switch for 100 MHz–18 GHz with exceptional isolation (>80 dB), low insertion loss, and switching speed <200 ns for extended frequency applications.
Product details
| Model | P9400C |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight P9400C is a solid-state PIN diode transfer switch designed for high-speed RF and microwave applications requiring extended frequency coverage. Operating from 100 MHz to 18 GHz, it provides the same exceptional isolation and switching speed as the P9400A while extending the frequency range to support higher-frequency test and measurement requirements. The integrated TTL-compatible driver simplifies system integration for instrumentation, communications, radar, and switch matrix applications.
Key Features
- Frequency range: 100 MHz to 18 GHz
- Port-to-port isolation: >80 dB
- Insertion loss: <3.5 dB (100 MHz to 8 GHz); <4.2 dB (8–18 GHz)
- Switching speed: <200 ns (typical)
- Return loss (ON ports): >10 dB
- Integrated TTL-compatible driver
- SMA female connectors
- 50 Ω characteristic impedance
Applications
- Extended frequency RF and microwave test systems
- High-frequency communications equipment
- Millimeter-wave radar and sensor systems
- High-frequency switch matrices
- Wideband signal routing networks
Specifications
| Frequency Range | 300 kHz to 8 GHz300 kHz to 18 GHz |
| Insertion Loss | < 3.0 dB (300 kHz to 4 GHz < 3.5 dB (4 to 8 GHz) < 5.0 dB (300 kHz to 8 GHz) < 6.5 dB (8 to 18 GHz) |
| Isolation | > 100 dB> 90 dB |
| Return Loss (ON Ports) | > 15 dB> 10 dB |
| Switching Speed * (typical) | 4/0.5 µs5/1 µs |
| Settling Time (typical) | 350 µs350 µs |
| Video Leakage (typical) | 90 mVpp90 mVpp |
| Characteristic Impedance (nominal) | 50 Ω50 Ω |
| Connectors | SMA (f)SMA (f) |
| Model Number | Description |
| U9400C | 18 GHz solid state FET transfer switch |
