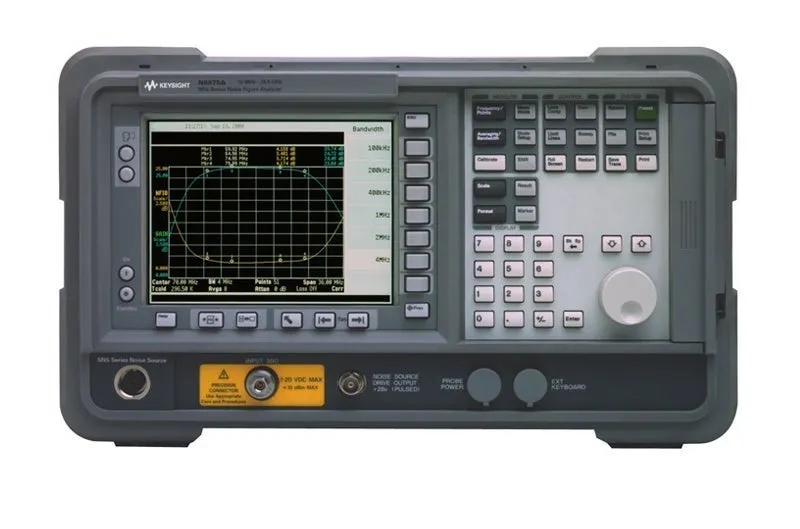

Keysight N8975A Noise Figure Analyzer
Request a quote
Keysight N8975A noise figure analyzer for 10 MHz–26.5 GHz with APC 3.5 connector, simultaneous noise figure/gain measurements, extendable to 110 GHz with downconverters.
Product details
| Model | N8975A |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight N8975A is a high-performance noise figure analyzer designed for fast, accurate, and repeatable noise figure measurements from 10 MHz to 26.5 GHz. It offers simultaneous measurement of noise figure and gain, simplifying the characterization of amplifiers and frequency translating devices. The analyzer features six user-selectable measurement bandwidths and APC 3.5 connectors for excellent signal fidelity at microwave frequencies. With optional block downconverters, measurement capability can be extended to 110 GHz.
Key Features
- Frequency range: 10 MHz to 26.5 GHz (extendable to 110 GHz with block downconverters)
- APC 3.5 male connector as standard
- Simultaneous noise figure and gain measurements
- Six user-selectable measurement bandwidths
- Multiple display and data export formats
- LO control via dedicated second GPIB port
- Compatible with SNS series noise sources (N4000A, N4001A, N4002A)
- Improved measurement accuracy and faster speed
Applications
- Characterization of low-noise amplifiers (LNAs) in microwave frequencies
- RF and microwave component evaluation
- Millimeter-wave device analysis with block downconverters
- Frequency translating device characterization
- Production testing of microwave amplifier modules
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
