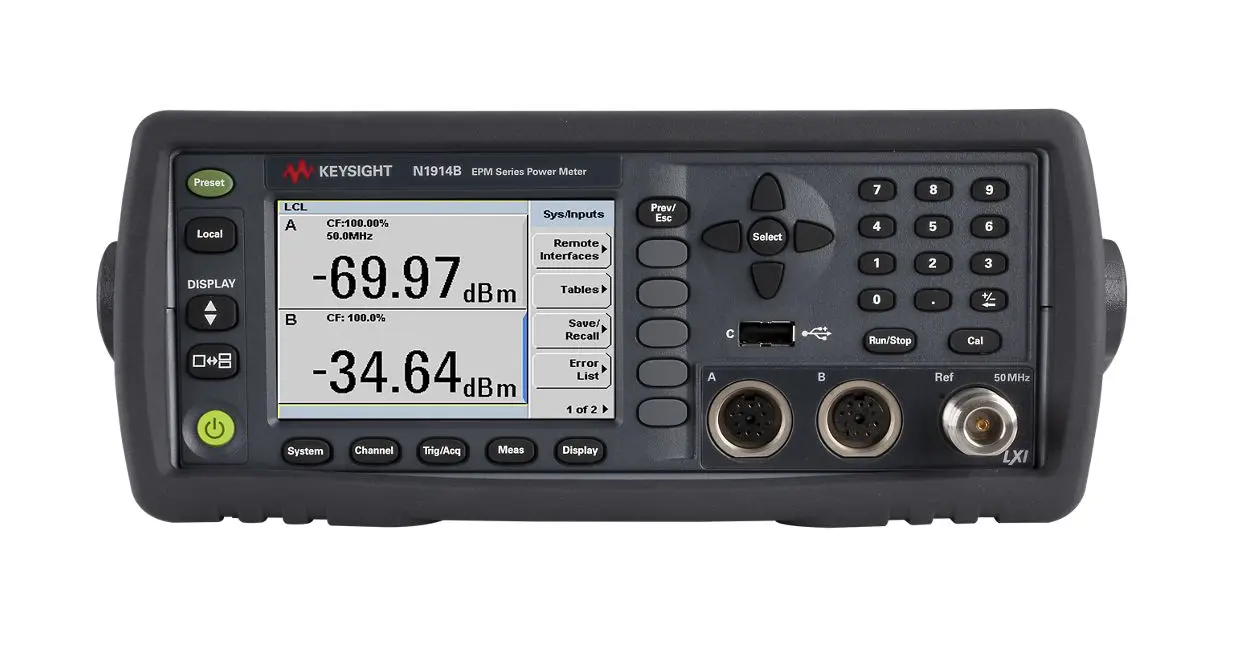

Keysight N1914B Dual Channel Power Meter
Request a quote
Keysight N1914B dual-channel RF power meter with DC to 120 GHz frequency range, -70 to +44 dBm dynamic range, and backward compatibility with legacy N1913/14A EPM meters.
Product details
| Model | N1914B |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight N1914B is a new-generation dual-channel EPM Series power meter that delivers consistent results and greater capability than its predecessors. It maintains backward compatibility with the N1913/14A models while offering enhanced features for RF and microwave power measurement.
Key Features
- Dual-channel average power meter from -70 to +44 dBm (sensor dependent)
- DC to 120 GHz frequency range (sensor dependent)
- Backward compatible with N1913/14A EPM Series power meters
- Multiple connectivity: GPIB, LAN (LXI-C), and USB
- Up to four-channel measurement with optional U2000/U8480 Series and U2050/U2060 X-Series USB power sensors
- Optional external trigger for automated frequency/power sweep measurements
- Includes BenchVue software license (BV0007B) for instrument control and test automation
Applications
- RF and microwave power measurement
- Bench and field testing
- Automated test sequences and system integration
Specifications
| Measurement Range | -70 to +44 dBm (sensor dependent) |
| Frequency Range | DC to 120 GHz (sensor dependent) |
| Channels | 2 (expandable to 4 with optional USB sensors) |
| Connectivity | GPIB, LAN (LXI-C), USB |
| Power Supply | 100-240 VAC, 50/60 Hz |
