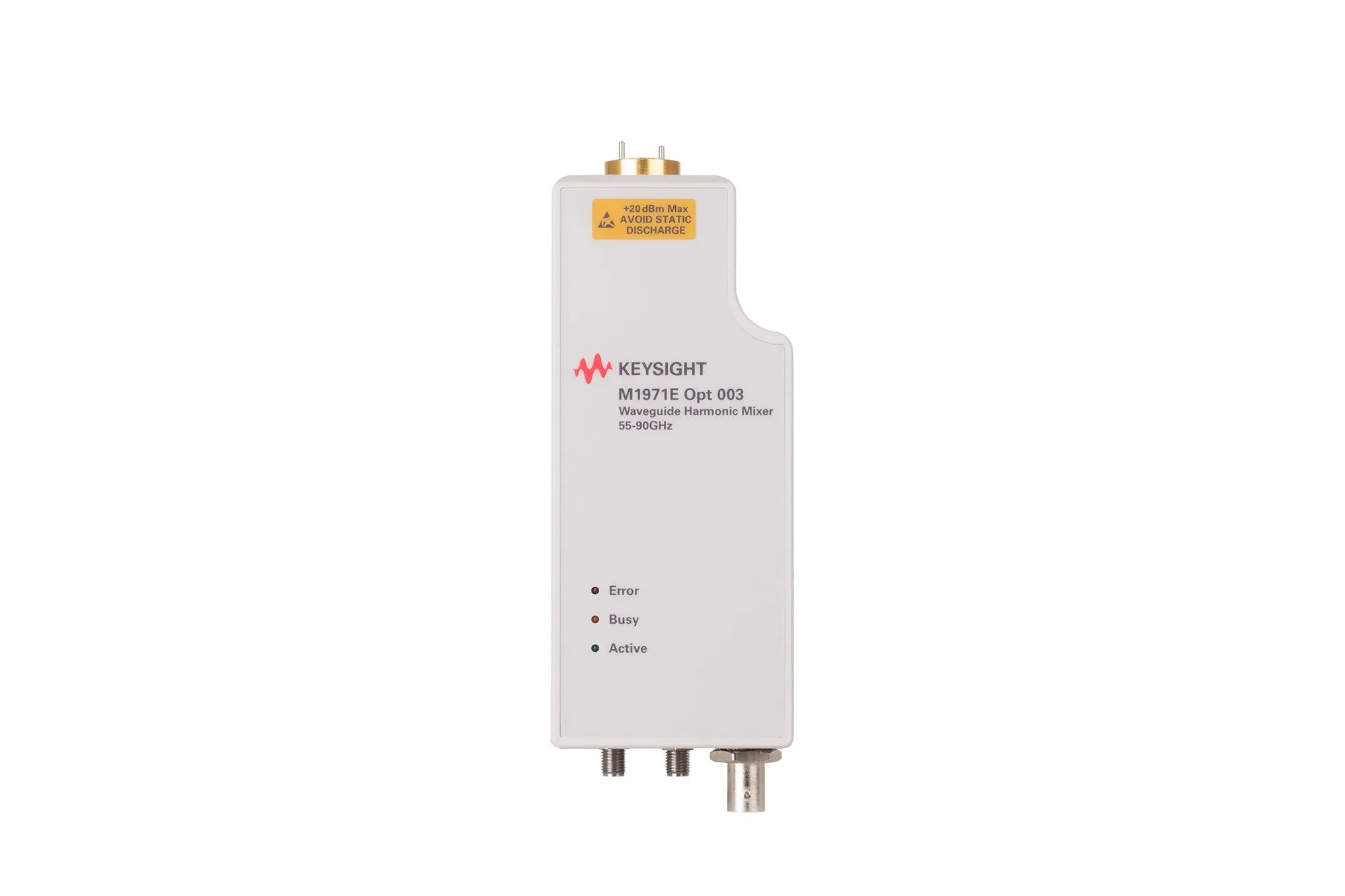

Keysight M1971E Waveguide Harmonic Mixer
Request a quote
Keysight M1971E is a 55/60 to 90 GHz waveguide harmonic mixer for wideband millimeter-wave signal analysis with over 2 GHz bandwidth and 27 dB maximum conversion loss.
Product details
| Model | M1971E |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight M1971E is a 55/60 to 90 GHz waveguide harmonic mixer designed for wideband millimeter-wave signal analysis with more than 2 GHz instantaneous bandwidth. This un-preselected mixer extends the capability of X-Series signal analyzers with embedded smart features to simplify test setup and improve DANL and TOI performance.
Key Features
- Wideband analysis capability with more than 2 GHz instantaneous bandwidth
- Automatic amplitude correction and conversion loss data transfer via USB plug-and-play
- Automatic LO amplitude adjustment to compensate for cable loss up to 3 m or 10 dB
- Excellent conversion loss of 27 dB maximum with excellent amplitude accuracy
Applications
- Wideband millimeter-wave signal analysis
- Compatible with X-Series signal analyzers
Specifications
| Frequency Range | 55/60 to 90 GHz |
| Mixer Type | Waveguide Harmonic (Un-preselected) |
| Instantaneous Bandwidth | >2 GHz |
| Conversion Loss | ≤27 dB |
| LO Cable Loss Compensation | Up to 3 m or 10 dB loss |
| Interface | USB |
| Compatibility | X-Series signal analyzers |
