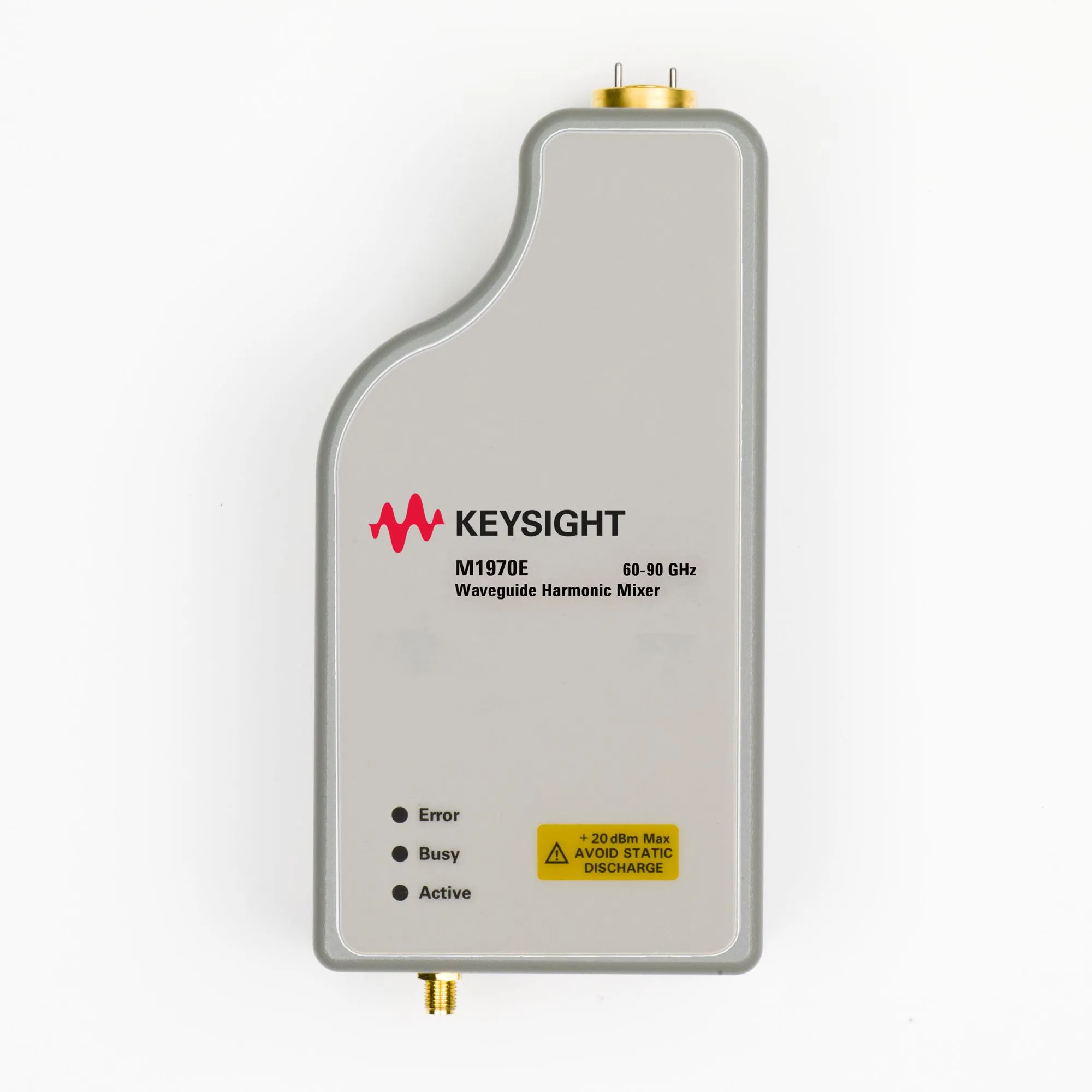

Keysight M1970E Waveguide Harmonic Mixer
Request a quote
Keysight M1970E is a 60 to 90 GHz waveguide harmonic mixer that extends signal analyzer frequency range with 27 dB maximum conversion loss and USB automation.
Product details
| Model | M1970E |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight M1970E is a 60 to 90 GHz waveguide harmonic mixer designed to extend the operating frequency range of Keysight signal analyzers up to 90 GHz. This un-preselected mixer provides simplified test setup with embedded smart features that improve DANL and TOI performance in millimeter-wave applications.
Key Features
- Automatic amplitude correction and conversion loss data transfer via USB plug-and-play
- Automatic LO amplitude adjustment to compensate for cable loss up to 3 m or 10 dB
- Automatic mixer model and serial number detection with compatible analyzers
- Automatic frequency range setting and LO harmonic number configuration
- Automatic LO alignment at startup and calibration adjustment for temperature and time changes
- Excellent conversion loss of 27 dB maximum with excellent amplitude accuracy
Applications
- Millimeter-wave signal analysis
- Compatible with N9030A PXA, N9020A MXA, and N9010A EXA signal analyzers
Specifications
| Frequency Range | 60 to 90 GHz |
| Mixer Type | Waveguide Harmonic (Un-preselected) |
| Conversion Loss | ≤27 dB |
| LO Cable Loss Compensation | Up to 3 m or 10 dB loss |
| Interface | USB |
| Compatibility | N9030A PXA, N9020A MXA, N9010A EXA signal analyzers |
