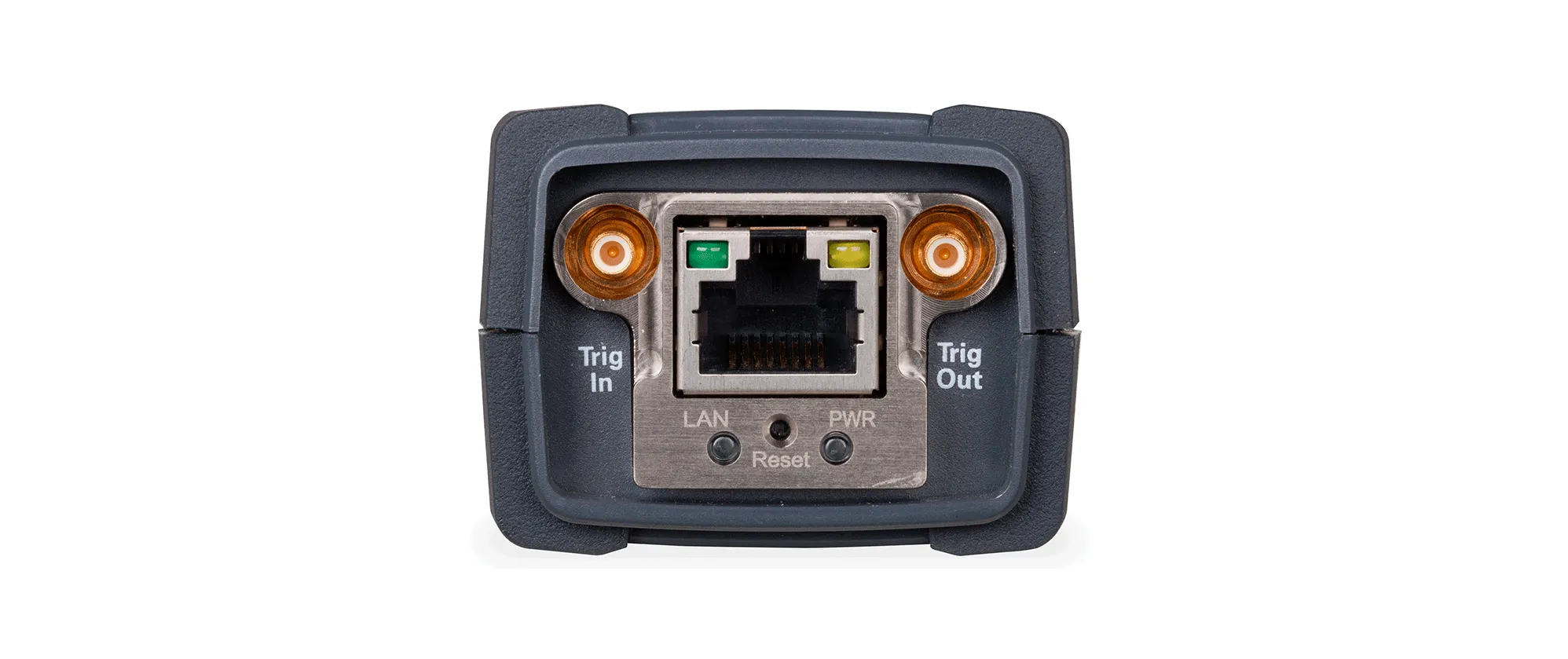

Keysight L2063XA LAN Peak and Average Power Sensor
Request a quote
Keysight L2063XA LAN peak and average power sensor with 10 MHz to 33 GHz frequency range, -70 to +26 dBm dynamic range, and 50,000 readings/sec.
Product details
| Model | L2063XA |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight L2063XA is a fast, accurate, and wide dynamic range peak and average power sensor operating from 10 MHz to 33 GHz with LAN connectivity. It is designed for accurate measurement of modulated RF and microwave signals with a wide dynamic range of -70 to +26 dBm, enabling measurement of both strong and small signals without manual attenuation adjustments.
Key Features
- Frequency range of 10 MHz to 33 GHz
- LAN connectivity with wide dynamic range of -70 to +26 dBm
- Fast real-time measurement of 50,000 readings/sec for high-throughput applications
- Variable sampling rate up to 1M samples/sec with 1M samples data storage
- Zero dead time measurement ensures every continuous pulse is captured
- Average mode time-selectivity function for full dynamic range averaging
- Internal zero and automatic calibration reduces measurement uncertainty
- Includes BenchVue software license (BV0007B) for data logging and visualization
Applications
- Modulated signal measurement and characterization
- Manufacturing and production testing of RF/microwave devices
- Communications system development and validation
- Research and laboratory measurements
Specifications
| L2063XA | LAN wide dynamic range peak and average power sensor, 10 MHz to 33 GHz |
