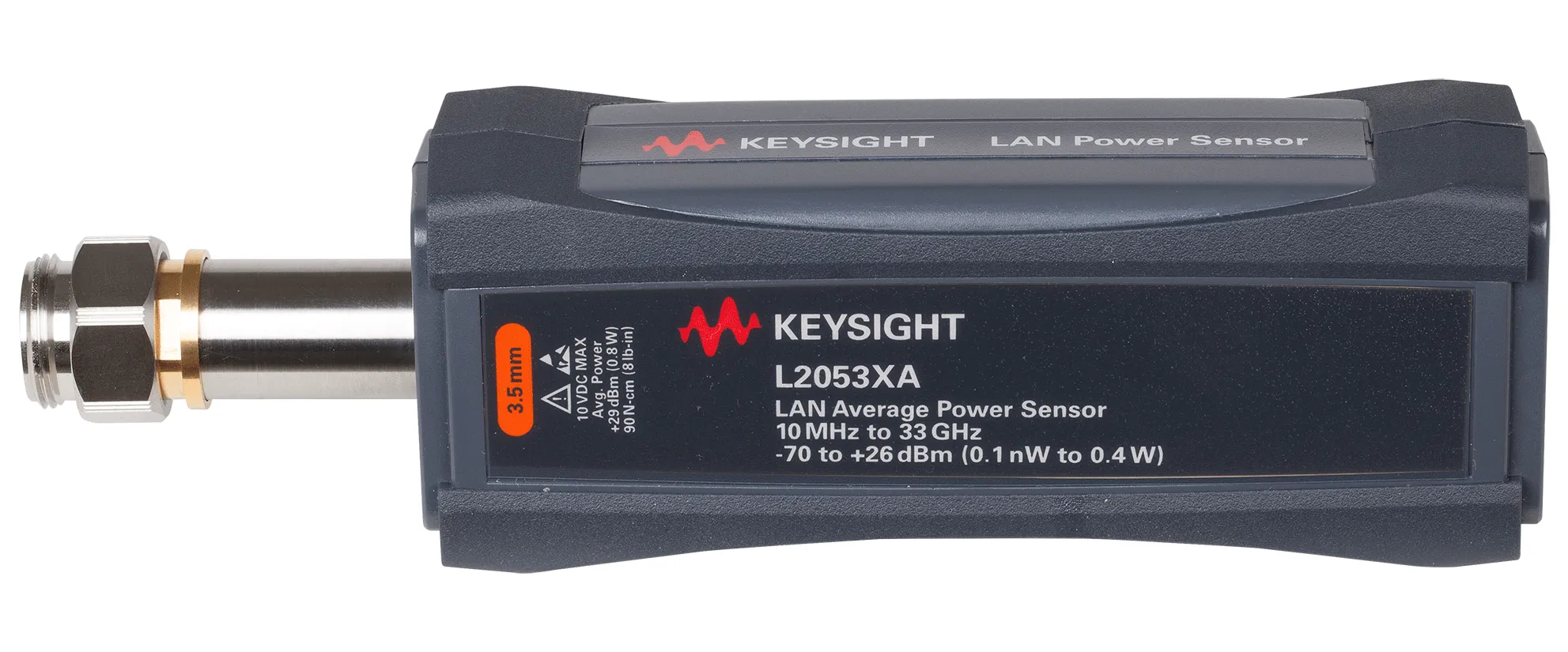

Keysight L2053XA LAN Wide Dynamic Range Average Power Sensor
Request a quote
Keysight L2053XA is a LAN-based average power sensor with 10 MHz–33 GHz frequency range, -70 to +26 dBm dynamic range, and 50,000 readings/sec measurement speed.
Product details
| Model | L2053XA |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight L2053XA is a LAN-connected average power sensor designed for accurate RF power measurements spanning 10 MHz to 33 GHz. It provides wide dynamic range coverage from -70 to +26 dBm with fast real-time measurement capability at 50,000 readings per second and zero dead time, making it suitable for comprehensive characterization of modulated signals across a broad frequency spectrum.
Key Features
- Frequency range: 10 MHz to 33 GHz
- LAN connectivity with wide dynamic range of -70 to +26 dBm for small signal measurements
- Fast real-time measurement: 50,000 readings/sec
- Zero dead time to ensure every continuous pulse is measured
- Average mode time-selectivity function for full dynamic range measurements
- Internal zero and automatic calibration to reduce measurement uncertainty
- Includes BenchVue software license (BV0007B) for measurement control and visualization
Applications
- RF and microwave power measurement across extended frequency ranges
- Ka-band and higher frequency signal analysis
- Modulated signal characterization and validation
- Manufacturing test and quality assurance
- Real-time power monitoring in complex signal environments
Specifications
| L2053XA | LAN wide dynamic range average power sensor, 10 MHz to 33 GHz |
