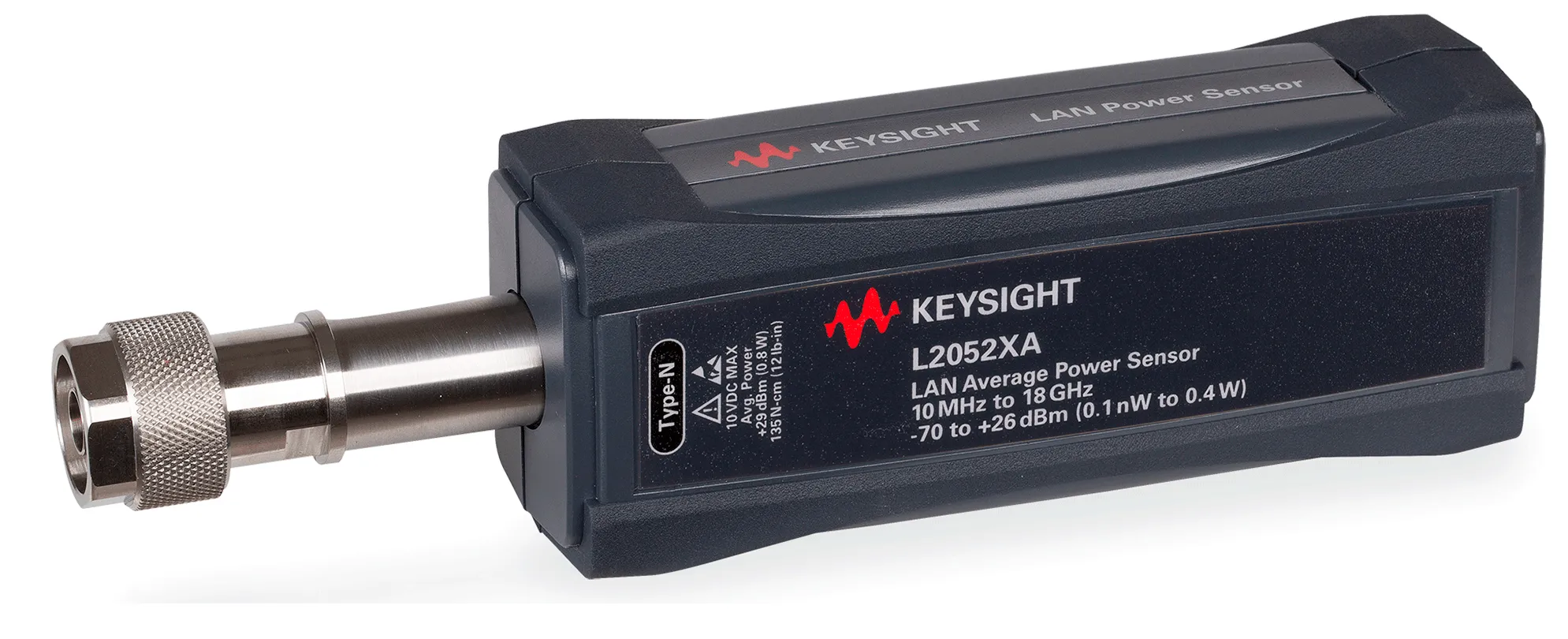

Keysight L2052XA LAN Wide Dynamic Range Average Power Sensor
Request a quote
Keysight L2052XA is a LAN-based average power sensor with 10 MHz–18 GHz frequency range, -70 to +26 dBm dynamic range, and 50,000 readings/sec measurement speed.
Product details
| Model | L2052XA |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight L2052XA is a LAN-connected average power sensor that enables accurate RF power measurements across 10 MHz to 18 GHz. It delivers wide dynamic range coverage from -70 to +26 dBm with fast real-time measurement capability at 50,000 readings per second and zero dead time, ideal for analyzing complex modulated signals in research and manufacturing environments.
Key Features
- Frequency range: 10 MHz to 18 GHz
- LAN connectivity with wide dynamic range of -70 to +26 dBm for small signal measurements
- Fast real-time measurement: 50,000 readings/sec
- Zero dead time to ensure every continuous pulse is measured
- Average mode time-selectivity function for full dynamic range measurements
- Internal zero and automatic calibration to reduce measurement uncertainty
- Includes BenchVue software license (BV0007B) for measurement control and visualization
Applications
- RF and microwave power measurement and characterization
- Modulated signal analysis and validation
- Manufacturing test and quality assurance
- Real-time power monitoring in complex signal scenarios
Specifications
| L2052XA | LAN wide dynamic range average power sensor, 10 MHz to 18 GHz |
