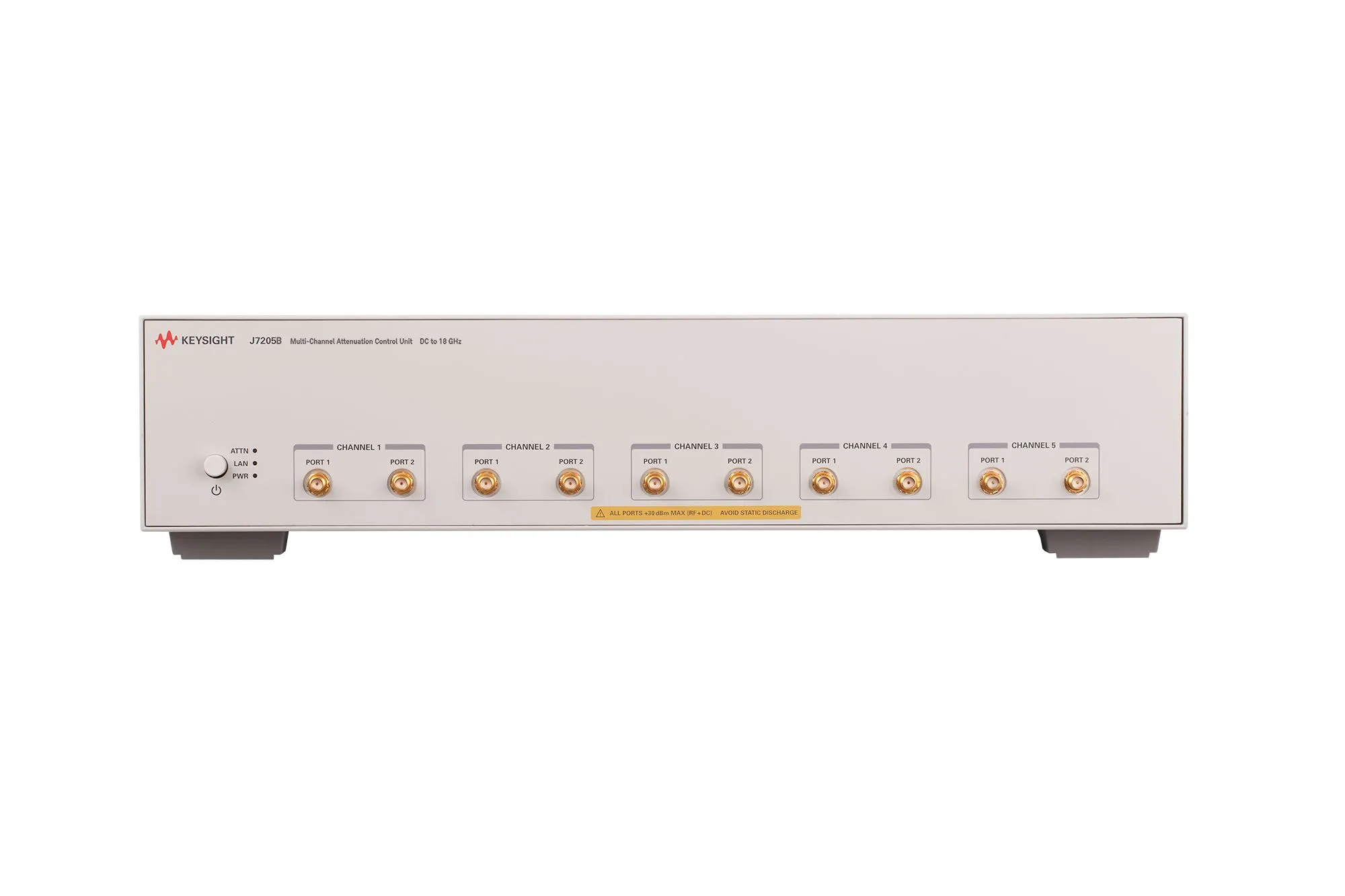

Keysight J7205B Attenuation Control Unit
Request a quote
Keysight J7205B is a 5-channel attenuation control unit for DC to 18 GHz operation with 121 dB attenuation and 0.03 dB insertion loss repeatability.
Product details
| Model | J7205B |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight J7205B is a 5-channel attenuation control unit designed for signal attenuation and conditioning of multiple devices under test. Operating from DC to 18 GHz with 0 to 121 dB attenuation in 1 dB steps, it delivers exceptional 0.03 dB insertion loss repeatability over 5 million cycles. Designed in a standard full rack, 2-unit-high form factor, the J7205B is suitable for both benchtop and automated test environments.
Key Features
- 5-channel attenuation path for simultaneous testing of multiple devices
- DC to 18 GHz operating frequency range
- 0 to 121 dB attenuation with 1 dB steps
- Exceptional 0.03 dB insertion loss repeatability per section over 5 million cycles
- Excellent attenuation accuracy and flatness
- LAN and GPIB interface for easy connectivity and programming
- Soft front panel for flexible control
- Full rack, 2-unit-high form factor
Applications
- Multi-channel signal attenuation for receiver sensitivity testing
- Wireless component testing and validation
- Device conditioning in automated test equipment
- Multi-DUT measurements in production environments
Specifications
| Frequency Range | DC to 18 GHz |
| Number of Channels | 5 |
| Attenuation Range | 0 to 121 dB |
| Attenuation Step Size | 1 dB |
| Insertion Loss Repeatability | 0.03 dB per section |
| Operating Life | 5 million cycles |
| Form Factor | Full rack, 2-unit-high |
| Interfaces | LAN, GPIB |
| Connectors | SMA |
