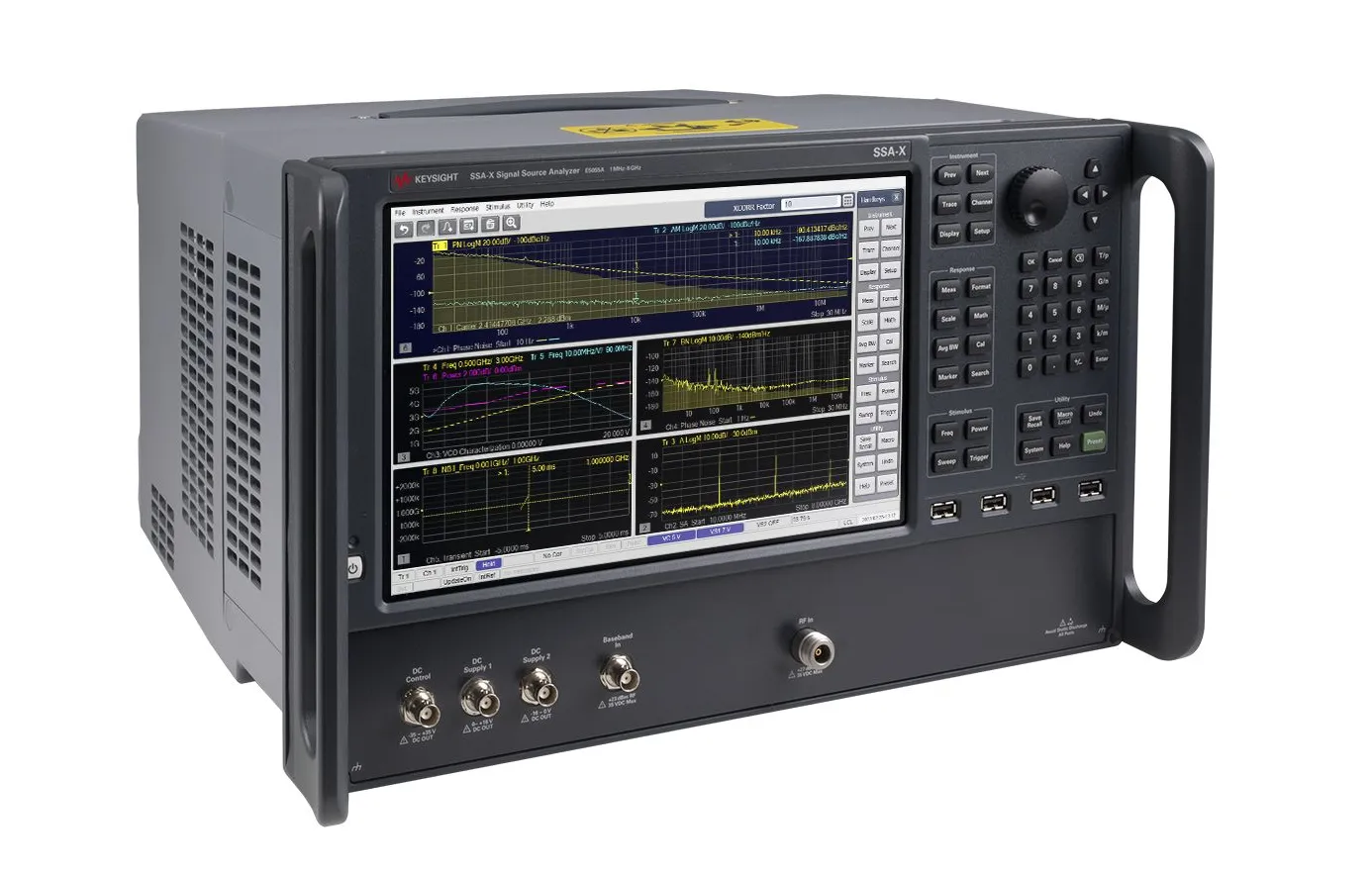

Keysight E5055A SSA-X Signal Source Analyzer
Request a quote
Keysight E5055A is a signal source analyzer measuring phase noise and RF parameters from 1 MHz to 8 GHz with ultra-low noise floor and cross-correlation method.
Product details
| Model | E5055A |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight E5055A SSA-X is a signal source analyzer designed for precise and accurate measurements of RF signal characteristics. It evaluates phase noise and other relevant parameters for signals from 1 MHz to 8 GHz, making it suitable for RF component characterization and oscillator evaluation applications.
Key Features
- Ultra-low noise floor and cross-correlation method for accurate phase noise measurements
- Phase noise sensitivity of -175 dBc/Hz (spec) and -181 dBc/Hz (typical) at 1 MHz offset
- Flexible measurement settings including phase noise, baseband noise, AM noise, transient analysis, and spectrum monitoring
- Modern multi-window display for improved measurement efficiency
- Two clean DC voltage outputs and one floating tuning voltage output for VCO evaluation
- Built-in reference source for self-contained operation
- Application software support for expanded measurement capabilities
Applications
- Voltage-controlled oscillator (VCO) characterization
- RF signal source evaluation
- Phase noise measurement and analysis
- Pulsed RF signal phase noise analysis
- Full span spectrum analysis
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Form Factor | Benchtop |
