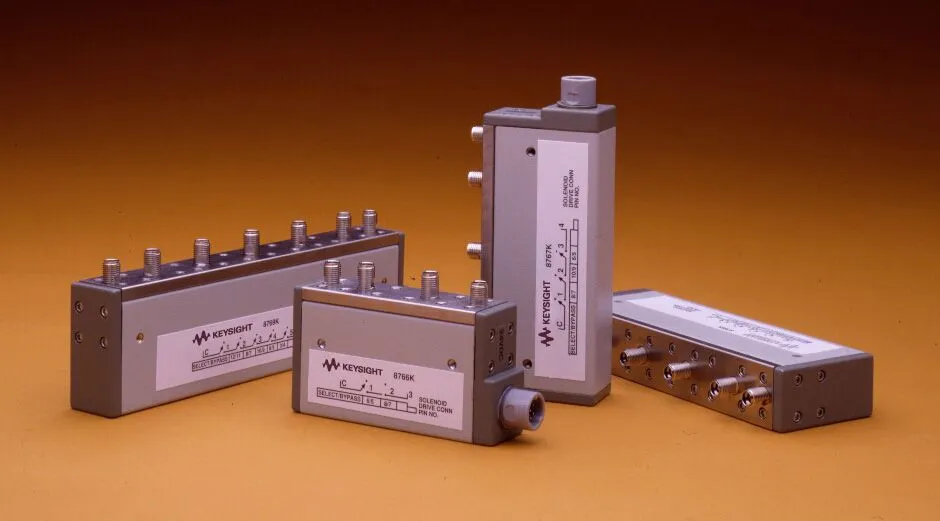

Keysight 8766K SP3T Microwave Switch
Request a quote
Keysight 8766K SP3T microwave switch with 0.01 dB repeatability to 18 GHz, > 5 million switching cycles, and compact design.
Product details
| Model | 8766K |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 8766K is a single-pole three-throw (SP3T) microwave switch that utilizes proven switching technology from the 849X family of step attenuators. Engineered for reliability and long-term operation, this switch offers exceptional repeatability and rugged performance in demanding RF and microwave measurement environments.
Key Features
- Single-pole three-throw (SP3T) configuration
- Proven switching technology from 849X family
- Excellent repeatability: 0.01 dB to 18 GHz, 0.05 dB to 26.5 GHz
- Long operational life: greater than five million switching cycles
- Fast switching time: < 20 ms including contact settling
- Self-interrupting contacts minimize power consumption
- Simple driver circuit design requirements
- Compact design
- Solenoid voltage options: 24V standard, 5V or 15V optional
Applications
- Automated test equipment (ATE) systems
- RF and microwave measurement and testing
- Signal routing in high-frequency applications
Specifications
| Configuration | Single-pole three-throw (SP3T) |
| Repeatability | 0.01 dB to 18 GHz, 0.05 dB to 26.5 GHz |
| Switching Time | < 20 ms (including contact settling) |
| Operating Life | > 5,000,000 switching cycles |
| Solenoid Voltage Options | 24V (standard), 5V or 15V (optional) |
| Contact Type | Self-interrupting |
