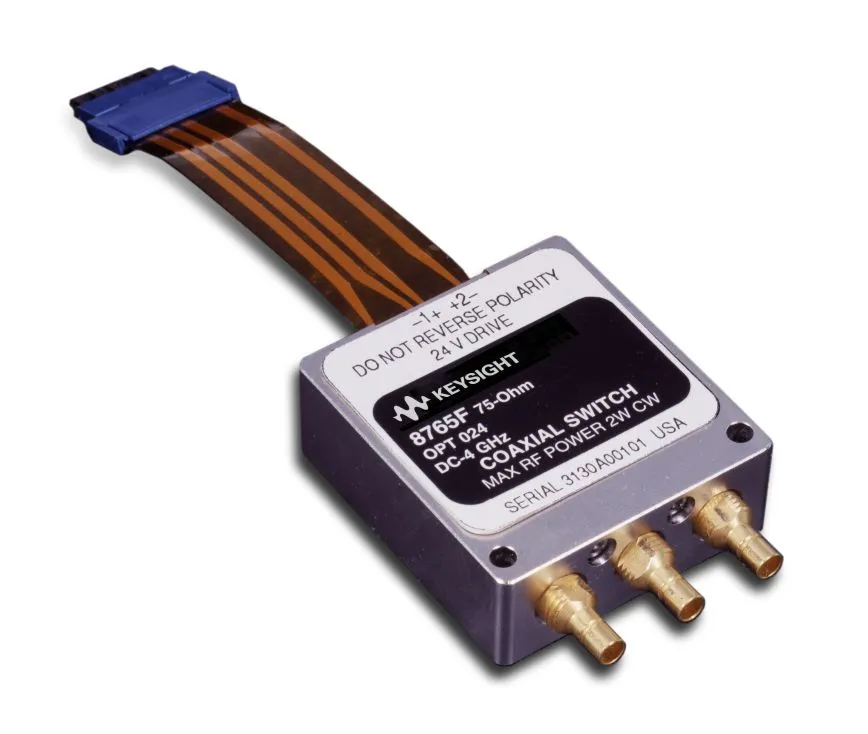

Keysight 8765F 75-Ohm Coaxial Switch
Request a quote
Keysight 8765F 75-ohm coaxial switch with flexible 4.5V-32V supply, break-before-make action, and insertion loss <0.18 dB to 1 GHz.
Product details
| Model | 8765F |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 8765F is a 75-ohm coaxial switch designed for automated test equipment (ATE) switching systems in telecommunications and cable television distribution. It provides the performance and reliability required for high-frequency switching applications while maintaining compatibility with standard 75-ohm system impedance.
Key Features
- 75-ohm impedance for cable television and communications equipment
- Unterminated configuration
- Break-before-make switching action
- Insertion loss: < 0.18 dB to 1 GHz, < 0.24 dB to 2 GHz, < 0.4 dB to 4 GHz
- Isolation: > 100 dB to 1 GHz, > 90 dB to 4 GHz
- Flexible voltage options: 4.5V to 32V dc for solenoid activation
- Standard dc ribbon cable connector with optional solder terminals (option 100)
Applications
- Automated test equipment (ATE) switching systems
- Cable television distribution equipment testing
- Telecommunications and communications equipment
Specifications
| Impedance | 75 ohm |
| Insertion Loss | < 0.18 dB to 1 GHz, < 0.24 dB to 2 GHz, < 0.4 dB to 4 GHz |
| Isolation | > 100 dB to 1 GHz, > 90 dB to 4 GHz |
| Supply Voltage Range | 4.5V to 32V dc |
| Switching Action | Break-before-make |
| Configuration | Unterminated |
