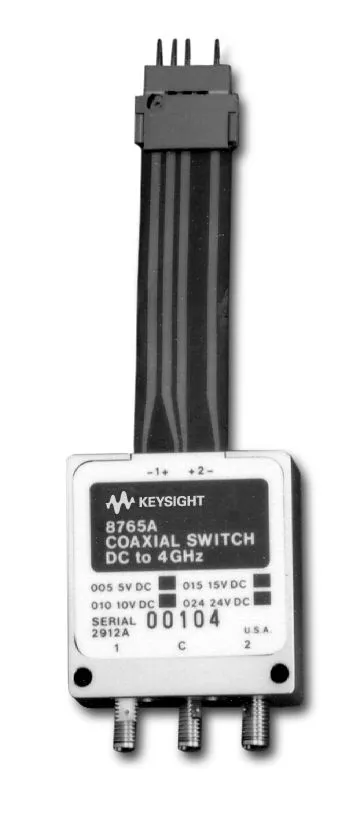

Keysight 8765A SPDT RF Switch
Request a quote
Keysight 8765A is an SPDT RF switch with 110 dB isolation and insertion loss under 0.2 dB, designed for microwave instrumentation and automated test systems.
Product details
| Model | 8765A |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 8765A is an unterminated single pole double throw (SPDT) RF switch designed for microwave instrumentation and automated test equipment systems. It features break-before-make switching action to ensure reliable signal routing and exceptional electrical performance across broad frequency ranges.
Key Features
- Unterminated SPDT configuration with break-before-make switching
- Superior isolation: 110 dB minus 2.25 dB/GHz
- Low insertion loss: less than 0.2 dB plus 0.025 dB/GHz
- Flexible voltage options: 4.5 to 32 volts DC
- Option 890 includes printout of test results
- Designed for maximum dependability and performance
Applications
- Microwave instrumentation systems
- Automatic test equipment (ATE)
- RF signal routing and switching
- Microwave component testing
Specifications
| Type | SPDT (Single Pole Double Throw) |
| Isolation | 110 dB - 2.25 dB/GHz |
| Insertion Loss | < 0.2 dB + 0.025 dB/GHz |
| Switching Action | Break-before-make |
| Voltage Options | 4.5 to 32 volts DC |
