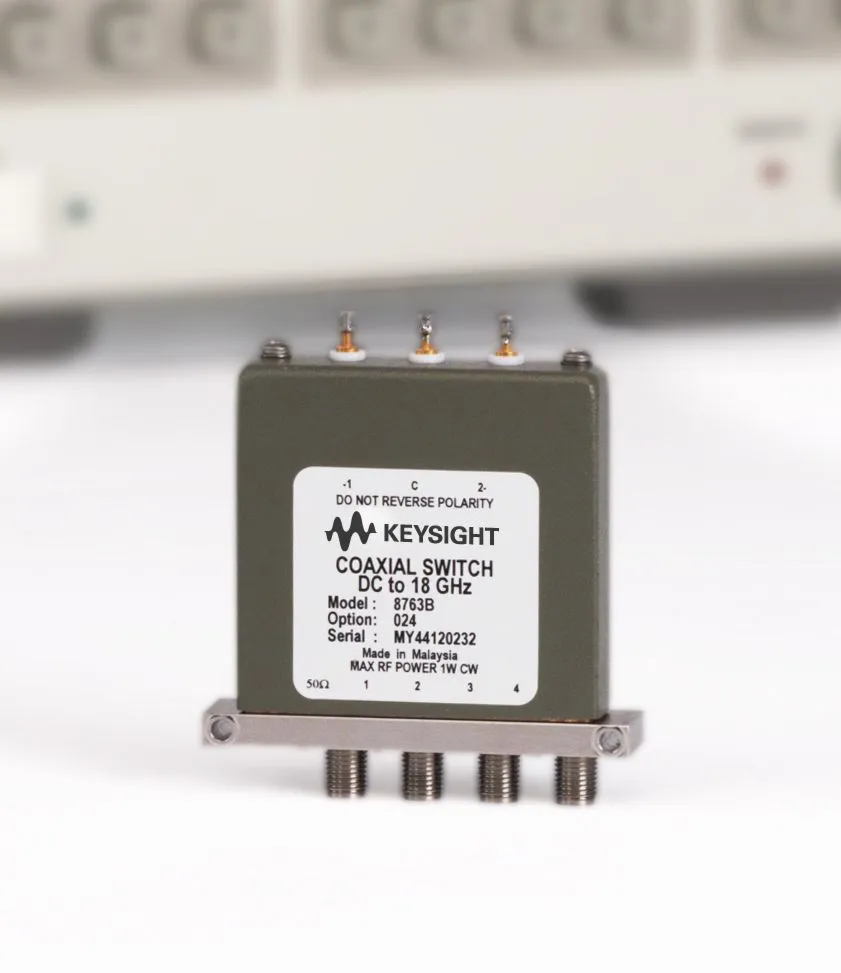

Keysight 8763B Coaxial Switch
Request a quote
Keysight 8763B — DC to 18 GHz multiport coaxial switch with low insertion loss, high isolation, and broadband RF performance.
Product details
| Model | 8763B |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 8763B is a 4-port coaxial RF switch operating from DC to 18 GHz. It provides excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, and exceptional repeatability. One port features a 50-ohm internal termination, making it suitable for broadband RF measurement and test applications.
Key Features
- Frequency range: DC to 18 GHz
- 4-port coaxial switch with one 50-ohm internal termination
- Insertion loss: < 0.20 dB (DC to 2 GHz), < 0.50 dB (2 to 18 GHz)
- Port isolation: > 90 dB across full frequency range
- SWR < 1.10 (DC to 2 GHz), < 1.20 (2 to 12.4 GHz), < 1.30 (12.4 to 18 GHz)
- High repeatability: 0.03 dB typical up to 1 million cycles
- SMA (f) connectors
Applications
- RF measurement and test systems
- Signal routing in receiver/transmitter chains
- Broadband antenna switching
- Microwave component characterization
Specifications
| Type | Multiport coaxial switch with four RF ports, one with 50-ohm termination |
| Superior RF performance | Insertion loss: < 0.20 dB to 2 GHz, < 0.5 dB to 18 GHz SWR (through line): < 1.1 to 2 GHz, < 1.2 to 12.4 GHz, < 1.3 to 18 GHz Isolation: > 90 dB to 18 GHz |
| Excellent RF repeatability & long life span | Guaranteed performance up to 1 million cycles |
| Frequency Range | dc to 4 GHzdc to 18 GHzdc to 26.5 GHz |
| Insertion Loss | < 0.20 dB, dc to 2 GHz < 0.25 dB, 2 to 4 GHz < 0.20 dB, dc to 2 GHz < 0.50 dB, 2 to 18 GHz < 0.25 dB, dc to 2 GHz < 0.50 dB, 2 to 18 GHz < 1.25 dB, 18 to 26.5 GHz |
| Isolation Between Ports | > 100 dB, dc to 4 GHz> 90 dB, dc to 18 GHz> 90 dB, dc to 18 GHz > 50 dB, 18 to 26.5 GHz |
| SWR Through Line | < 1.10, dc to 2 GHz < 1.20, 2 to 4 GHz < 1.10, dc to 2 GHz < 1.20, 2 to 12.4 GHz < 1.30, 12.4 to 18 GHz < 1.15, dc to 2 GHz < 1.25, 2 to 12.4 GHz < 1.40, 12.4 to 18 GHz < 1.80, 18 to 26.5 GHz |
| Connectors | SMA (f)SMA (f)3.5 mm (f) |
| 8763B | 18 GHz |
