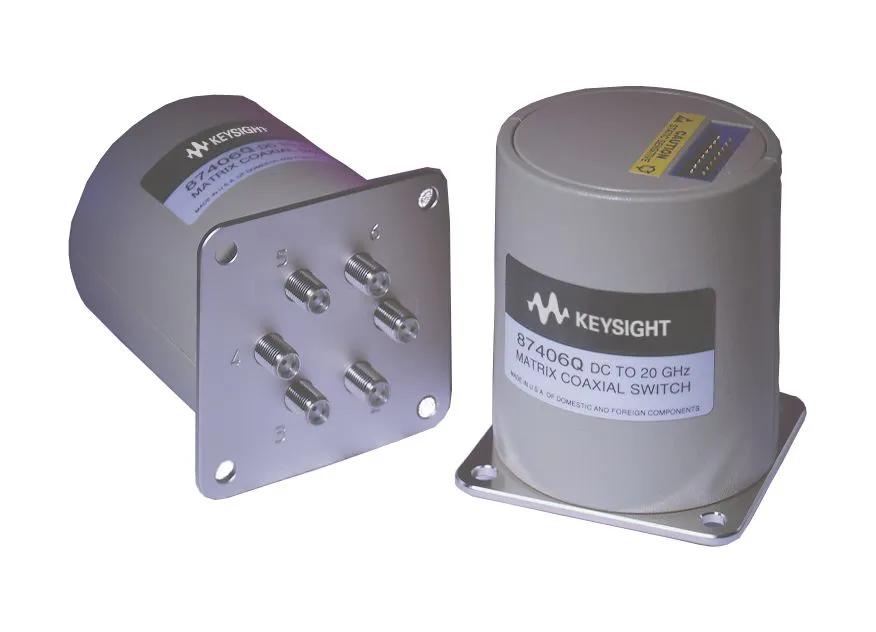

Keysight 87406Q Matrix Switch
Request a quote
Keysight 87406Q is an RF matrix switch with 3×3, 2×4, and 1×5 configurations, 20 to 50 GHz frequency range, and 10 million cycle operating life.
Product details
| Model | 87406Q |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 87406Q is an RF matrix switch engineered for automated test and measurement applications in the 20 to 50 GHz frequency range. Featuring robust design and precise engineering, it provides exceptional switching reliability and repeatability required for high-frequency RF and microwave testing, signal routing, and monitoring applications.
Key Features
- Multiple blocking matrix configurations: 3×3, 2×4, and 1×5
- Frequency range: 20 to 50 GHz
- Magnetic latching with make-before-break or break-before-make operation
- Operating life of 10 million cycles, typical
- Excellent insertion loss repeatability
- Opto-electronic indicators and interrupts
Applications
- High-frequency RF and microwave testing
- Automated signal routing and monitoring
- Production test systems
- Satellite and antenna systems
Specifications
| Frequency Range | 20 to 50 GHz |
| Matrix Configurations | 3×3, 2×4, 1×5 |
| Operating Life | 10 million cycles, typical |
| Switching Operation | Make-before-break or break-before-make |
| Control Logic | Opto-electronic indicators and TTL logic compatible |
