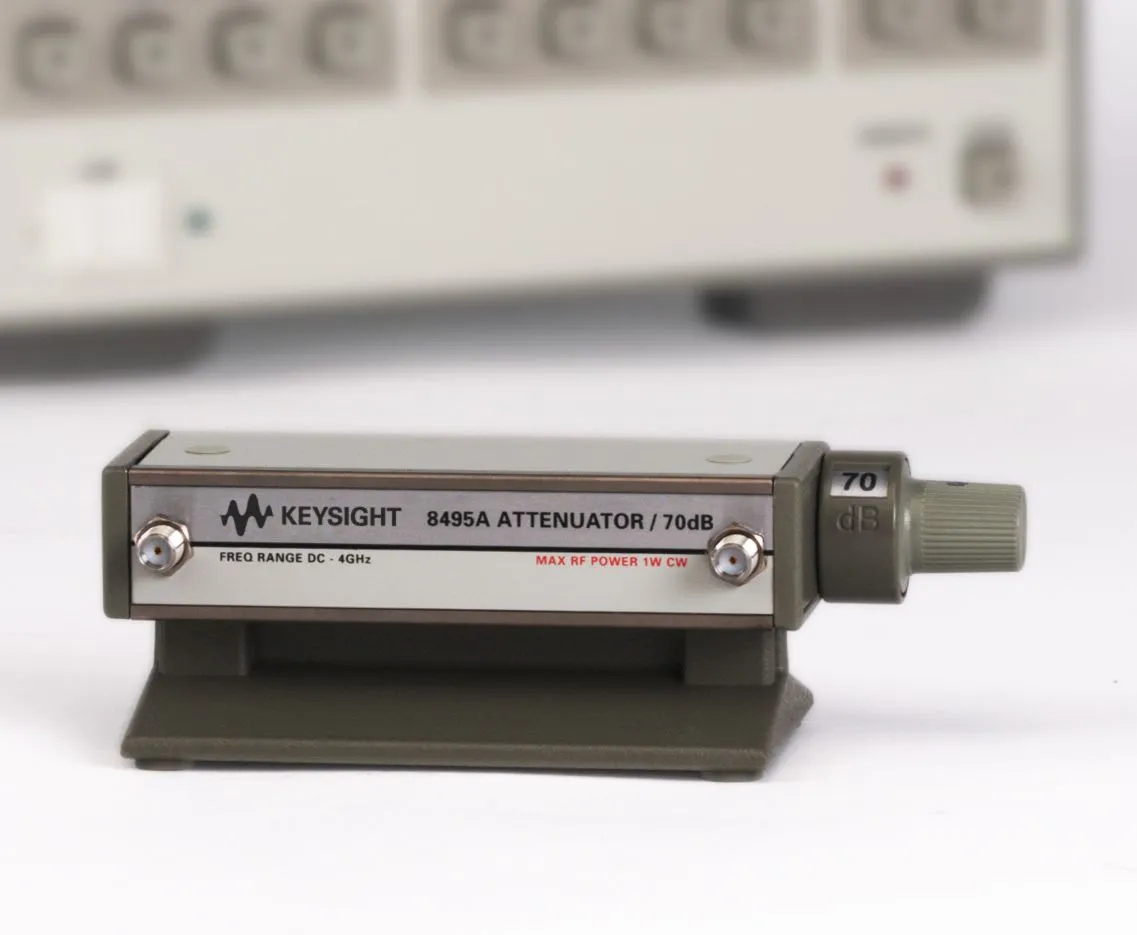

Keysight 8495A Manual Step Attenuator
Request a quote
Keysight 8495A manual step attenuator with 0 to 70 dB attenuation in 10 dB steps, frequency DC to 4 GHz, 0.01 dB repeatability, and 5 million cycle lifespan.
Product details
| Model | 8495A |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 8495A is a manual step attenuator for DC to 4 GHz applications. It provides attenuation in 10 dB steps from 0 to 70 dB with exceptional repeatability and reliability. Precision gold-plated leaf springs ensure long operational life and very high attenuator repeatability (typically 0.01 dB).
Key Features
- Frequency range: DC to 4 GHz
- Attenuation range: 0 to 70 dB in 10 dB steps
- Repeatability: 0.01 dB (typical)
- Life span: 5 million cycles per section
- Precision gold-plated leaf springs
- Optional NIST traceable calibration data available
Applications
- Signal level control in RF measurement systems
- Impedance matching and attenuation in RF circuits
- Laboratory test equipment
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
