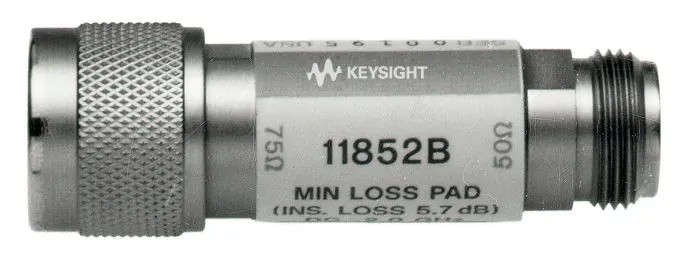

Keysight 11852B RF Adapter
Request a quote
Keysight 11852B is an instrument-grade RF adapter converting 50-ohm to 75-ohm type-N connectors for RF test and measurement equipment.
Product details
| Model | 11852B |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 11852B is an instrument-grade RF adapter designed for measurement systems using type-N connectors. It provides impedance conversion from 50 ohms to 75 ohms, enabling compatibility between equipment with different characteristic impedances.
Key Features
- 50-ohm type-N female to 75-ohm type-N male configuration
- Instrument-grade construction for reliable measurements
- Alternative configuration available (50-ohm male to 75-ohm female)
- Option 004 variant with reversed impedance configuration
Applications
- RF network analyzer measurements
- Test equipment integration
- Impedance matching for RF systems
Specifications
| Frequency Range | DC to 3 GHz |
| Connector Type - Primary | 50-ohm type-N (female) to 75-ohm type-N (male) |
| Connector Type - Alternative | 50-ohm type-N (male) to 75-ohm type-N (female) |
| Return Loss | > 27 dB |
| Insertion Loss | 5.7 dB (typical) |
| Electrical Length | 50.2 mm (1.98 in) |
| Overall Length | 60.1 mm (2.37 in) |
| Diameter | 22.0 mm (0.87 in) |
