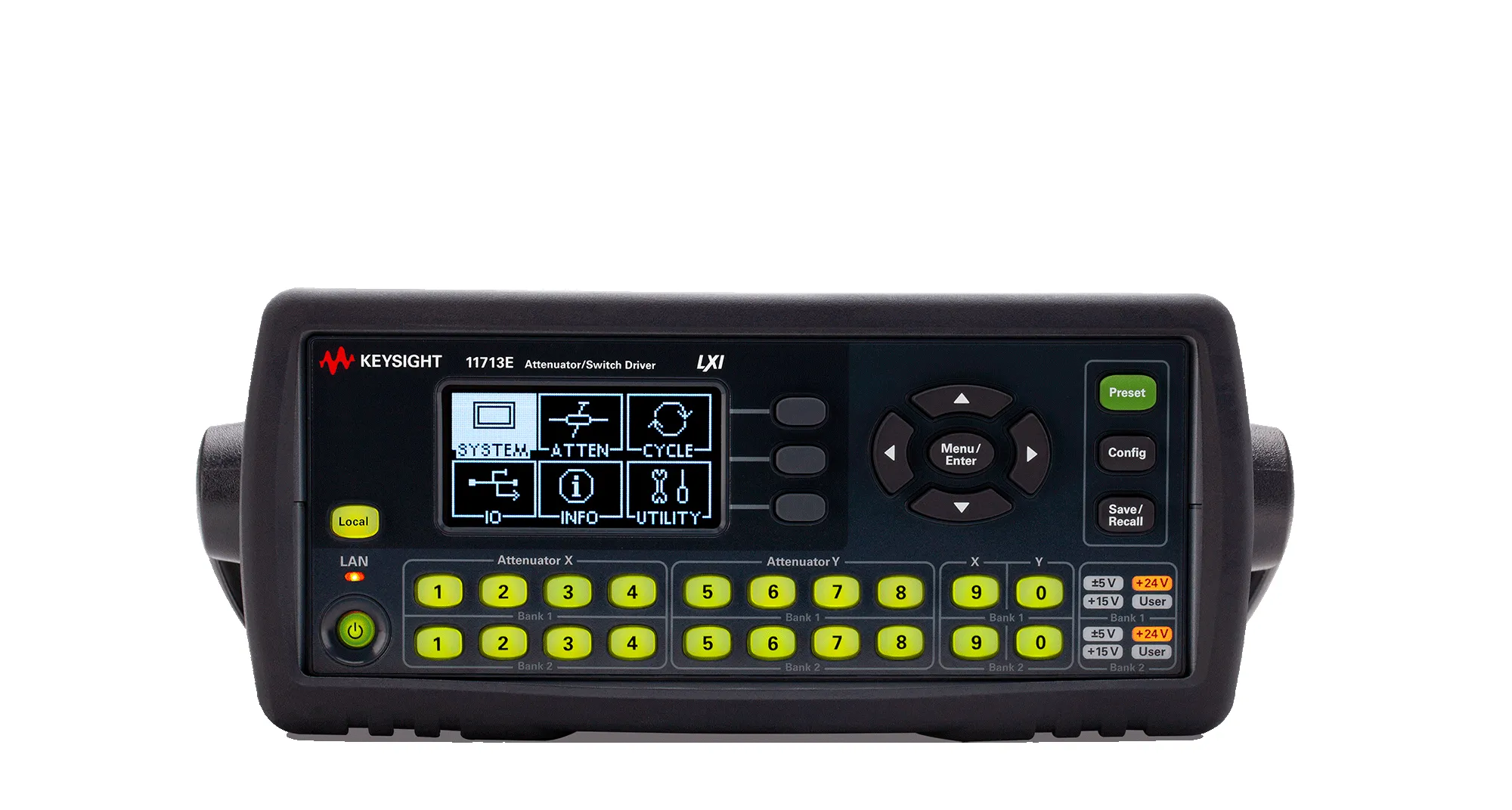

Keysight 11713E Attenuator/Switch Driver
Request a quote
Keysight 11713E LXI-compliant attenuator/switch driver controlling up to 20 SPDT switches and 4 programmable attenuators with integrated power supply and remote control.
Product details
| Model | 11713E |
| Manufacturer | Keysight |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Keysight 11713E is an LXI-compliant attenuator/switch driver offering remote or front-panel control for managing programmable attenuators and electromechanical switches. Designed for both benchtop and automated test equipment (ATE) environments, it provides an intuitive user interface, flexible switching options, and comprehensive programming capabilities for efficient design validation and production testing.
Key Features
- LXI-compliant for remote control via graphical web interface
- GPIB, USB, and LAN connectivity for easy integration
- Controls up to 20 SPDT switches and 4 programmable attenuators
- Supports both continuous and pulse-drive modes
- Integrated tri-voltage power supply (5V, 15V, 24V)
- User-defined voltage supply for maximum compatibility
- 3.4 A maximum continuous current
- Standard SCPI programming language
- Full backward compatibility with Keysight 11713C
Applications
- Automated test equipment (ATE) systems
- RF and microwave testing
- Design validation and characterization
- Production test environments
Specifications
| Switching Capability | Up to 20 SPDT switches |
| Attenuator Control | Up to 4 programmable attenuators |
| Drive Modes | Continuous and pulse drive |
| Power Supply Voltages | 5V, 15V, 24V tri-voltage or user-defined |
| Maximum Continuous Current | 3.4 A |
| Remote Control Interfaces | GPIB, USB, LAN with LXI compliance |
| Programming Language | SCPI standard |
| Backward Compatibility | Keysight 11713C |
