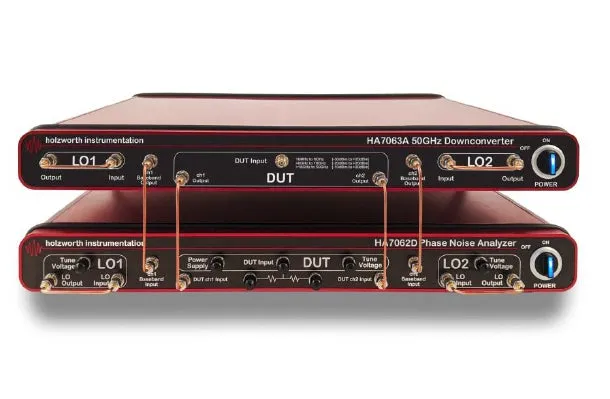

Holzworth HA7062D Real Time Phase Noise Analyzer
Request a quote
Holzworth HA7062D Real Time Phase Noise Analyzer covers 10 MHz to 26 GHz with noise floor < -190 dBc/Hz and dual-core FFT engine.
Product details
| Model | HA7062D |
| Manufacturer | Holzworth |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Holzworth HA7062D is a real-time phase noise analyzer designed for accurate measurement of phase noise in RF frequency sources. It features a fully shielded, fan-less 1U chassis that eliminates ground loops and microphonics, ensuring uncompromised performance and repeatability. The instrument includes dual Holzworth HSX Series RF Synthesizers as internal local oscillators, enabling direct access to key internal modules and flexible measurement scenarios.
Key Features
- Frequency range: 10 MHz to 26 GHz (40 GHz optional)
- Real-time phase noise measurement with dual-core FFT engine
- Noise floor: < -190 dBc/Hz at 10 kHz offset
- Measurement offset range: 0.1 Hz to 100 MHz
- Integrated HSX Series RF Synthesizers as LO sources
- Fully shielded, fan-less 1U chassis design
- Direct access to internal modules for noise floor verification
Applications
- RF and microwave component characterization
- Phase noise measurement in frequency synthesis and oscillator development
- Automated test equipment (ATE) manufacturing and quality assurance
- Product development optimization and validation
Specifications
| Frequency Range | 10 MHz to 26 GHz (40 GHz optional) |
| Measurement Offset | 0.1 Hz to 100 MHz |
| Noise Floor | < -190 dBc/Hz at 10 kHz offset |
