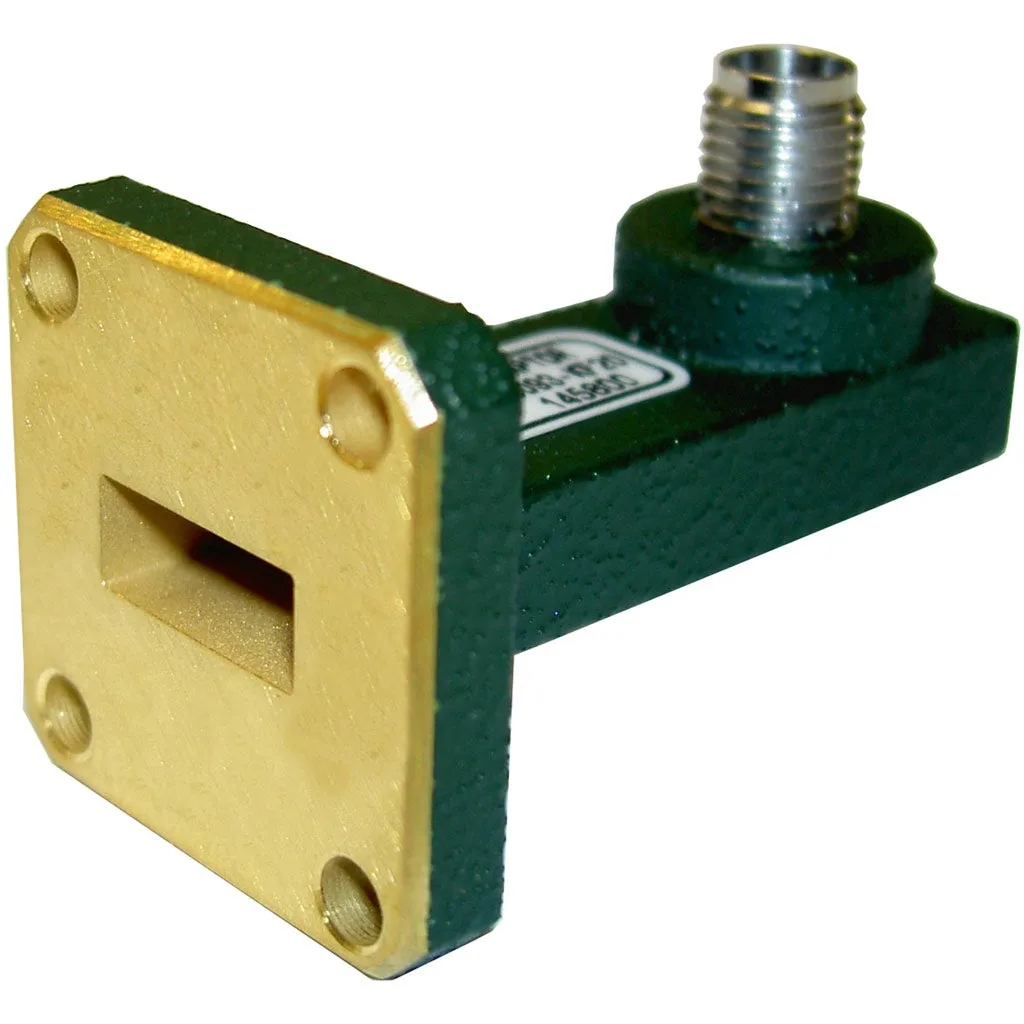

Flann 22094-KF20 Waveguide to Coax Adaptor
Request a quote
Flann 22094-KF20 is a precision K-type waveguide to coaxial adaptor for 26.4 to 40.1 GHz operation with superior VSWR of 1.15 and robust construction.
Product details
| Model | 22094-KF20 |
| Manufacturer | Flann |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Flann 22094-KF20 is a precision waveguide to coaxial adaptor engineered for demanding RF and microwave measurement applications. Featuring a K-type connector and improved mechanical design, this adaptor delivers superior performance with low VSWR, making it ideal for high-frequency testing and system integration.
Key Features
- K-type connector (precision design)
- Frequency range: 26.4 to 40.1 GHz
- Superior VSWR: 1.15 (better than)
- Improved mechanical design for enhanced durability
- Available in brass or aluminium construction
- Optimized for narrowband and broadband applications
Applications
- Millimeter-wave test and measurement systems
- RF and microwave network analyzers
- High-frequency component characterization
- Waveguide to coax impedance matching
Specifications
| 22094-KF20 | 26.4 - 40.122320281.1528.436.515.7 |
