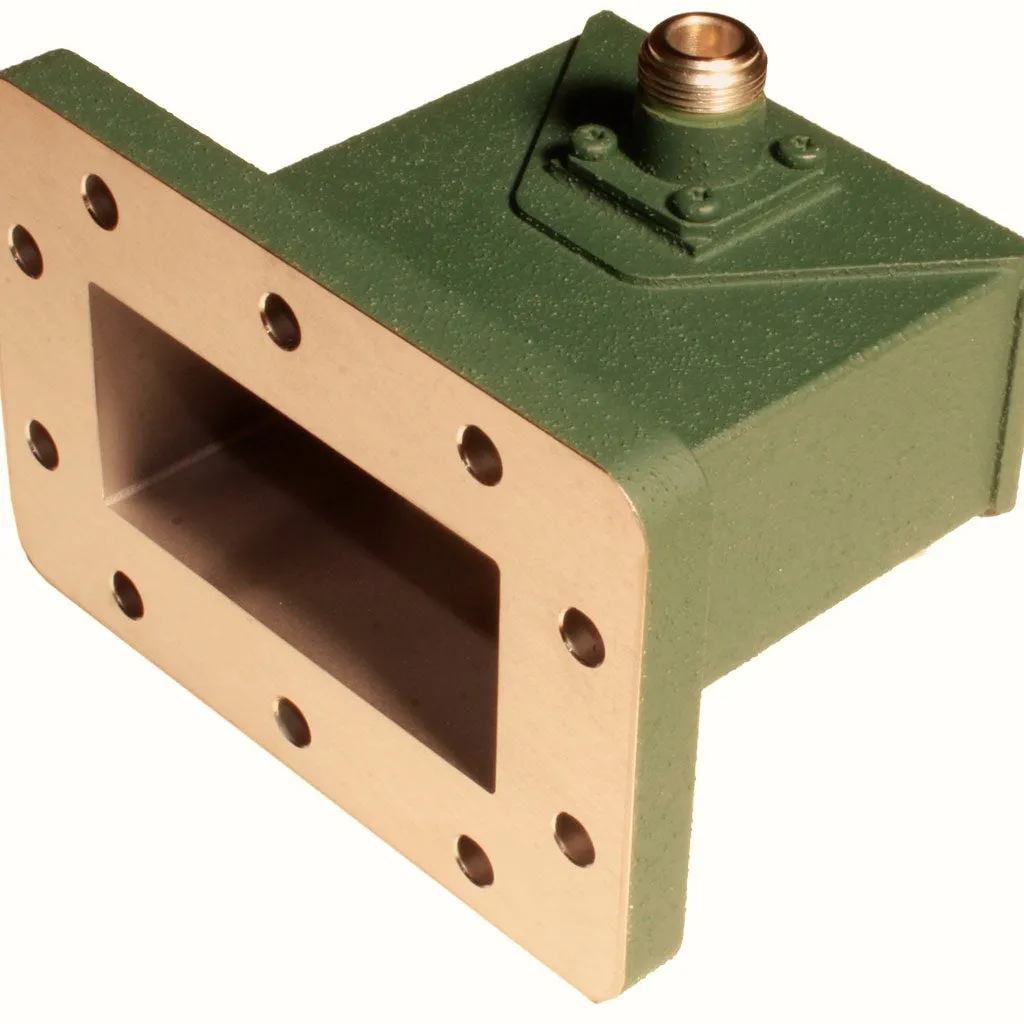

Flann 17094-NF10 Waveguide to Coax Adapter
Request a quote
The Flann 17094-NF10 is a broadband waveguide-to-coax adapter with Type N female connector, 1.12 VSWR, and full X-band coverage (9.84–15.0 GHz).
Product details
| Model | 17094-NF10 |
| Manufacturer | Flann |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Flann 17094-NF10 is a broadband waveguide-to-coax adapter designed for seamless integration between WG17 waveguide and Type N female coaxial connectors. Operating across the full X-band frequency range (9.84 to 15.0 GHz), this adapter delivers enhanced VSWR performance and is manufactured from brass or aluminum for durability and reliability.
Key Features
- Very low VSWR of 1.12 (better than) across full band
- Full X-band waveguide coverage (9.84 - 15.0 GHz)
- Type N female connector standard
- Brass or aluminum construction options
- Compact design with 42.2mm and 52mm dimensions
- Lightweight at 0.15 kg
Applications
- RF and microwave test equipment interconnection
- Impedance matching between waveguide and coax systems
- Broadband signal measurement and conditioning
- Laboratory and production testing
Specifications
| 17094-NF10 | 9.84 - 15.017120751.1242.25244.20.15 |
