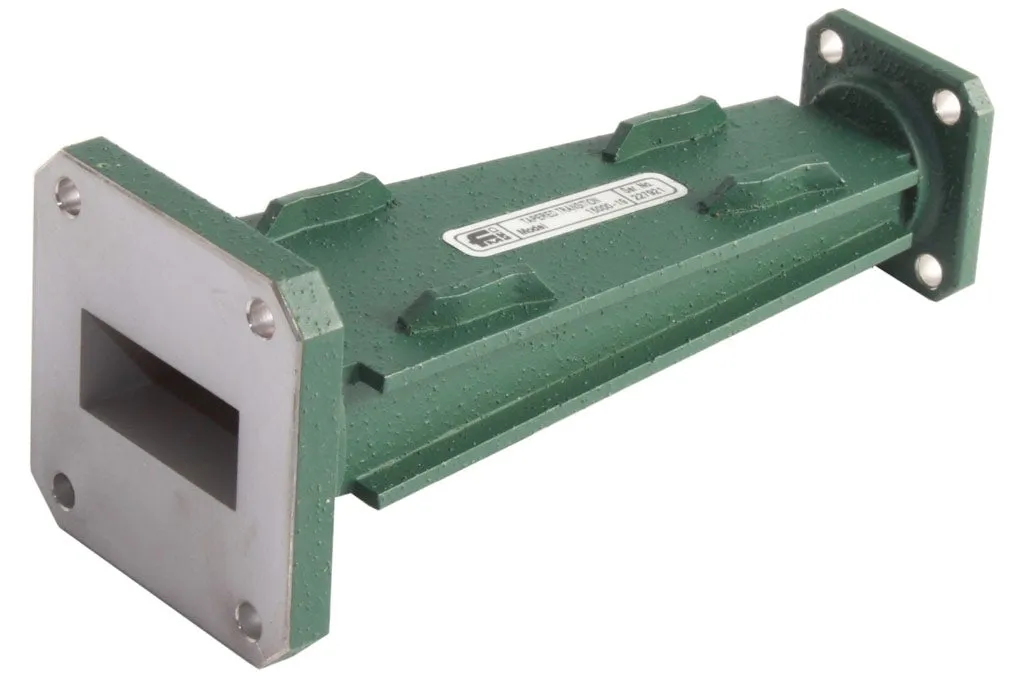

Flann 17000-18 Rectangular Waveguide to Waveguide Tapered Transition
Request a quote
Flann 17000-18 is a precision rectangular waveguide to waveguide tapered transition offering low VSWR and minimal insertion loss for RF and microwave applications.
Product details
| Model | 17000-18 |
| Manufacturer | Flann |
| Category | RF & Microwave Test Equipment |
| Availability | Made to order |
Description
Overview
The Flann 17000-18 is a precision rectangular waveguide to waveguide tapered transition. These components provide a gradual dimensional change between waveguide sizes, designed for RF and microwave applications where frequency band overlap occurs.
Key Features
- Low VSWR typically better than 1.03 in overlapping frequency bands
- Minimal insertion loss
- Minimal length design
- High mode purity maintained during transition
Specifications
- Input waveguide: WR-75
- Output waveguide: WR-62
- Overall length: 60 mm
- Weight: 0.15 kg
Applications
- RF and microwave testing and measurement
- Waveguide system interconnections
- Frequency band transition coupling
Specifications
| 17000-18 | 17120751814062600.15 |
