Keysight 83059K RF Adapter Kit
Request a quote
Keysight 83059K precision 3.5-mm RF adapter kit for DC-26.5 GHz applications with low insertion loss and excellent SWR performance.
Product details
| Model | 83059K |
| Manufacturer | Keysight |
| Category | RF Adapters |
| Availability | Made to order |
Description
Overview

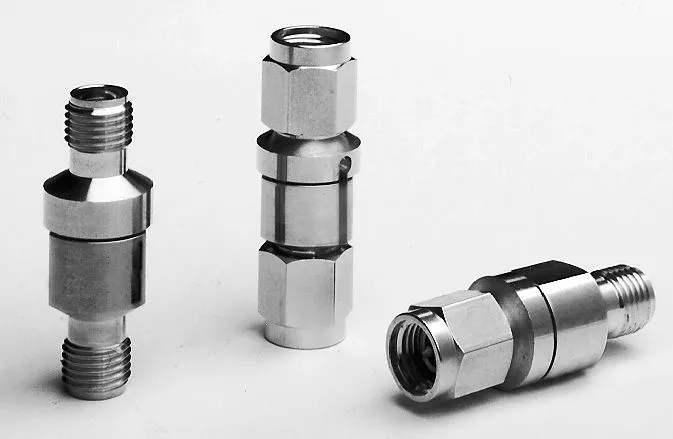

The Keysight 83059K precision RF adapter kit includes three 3.5-mm coaxial connectors: the 83059A (male-to-male), the 83059B (female-to-female), and the 83059C (male-to-female). These precision instrument-grade adapters function as ideal connector savers for RF applications operating from DC to 26.5 GHz.
Key Features
- Precision instrument-grade 3.5-mm coaxial connectors
- Low insertion loss (0.074 dB typical)
- Excellent return loss (–32 dB typical minimum)
- Low SWR (Standing Wave Ratio)
- Excellent repeatability
- Three different mating configurations in one kit
Applications
- RF and microwave test and measurement
- Precision adapter replacements for existing systems
- Connector preservation in sensitive RF equipment
Specifications
| Model Number | Connector Type* Frequency (GHz)Typical Min Return LossTypical Max. Insertion Loss** / *** |
| 83059K (Kit) | 3.5 mm (m-m) (f-f), (m-f)DC - 26.5– 32 dB0.074 dB |
