Keysight PW9252A PathWave Advanced Power Control and Analysis
Request a quote
Keysight PW9252A is PathWave software for power control and analysis, supporting up to 10 instruments with scope, data logger, and CCDF analysis modes.
Product details
| Model | PW9252A/SW1000-LIC-01/SW1000-SUP-01 |
| Manufacturer | Keysight |
| Category | Power Supply Accessories |
| Availability | Made to order |
Description
Overview
PathWave Advanced Power Control and Analysis is a user-friendly software platform for controlling and measuring advanced power systems. It integrates seamlessly with Keysight's N6705 DC power analyzer, RP7900 Series regenerative power systems, and APS N7900 Series power supplies, supporting over 36 DC power modules when used with an N6705 mainframe.
Key Features
- Control up to 10 instruments concurrently
- Track and record power supply outputs to assess event impact on power consumption

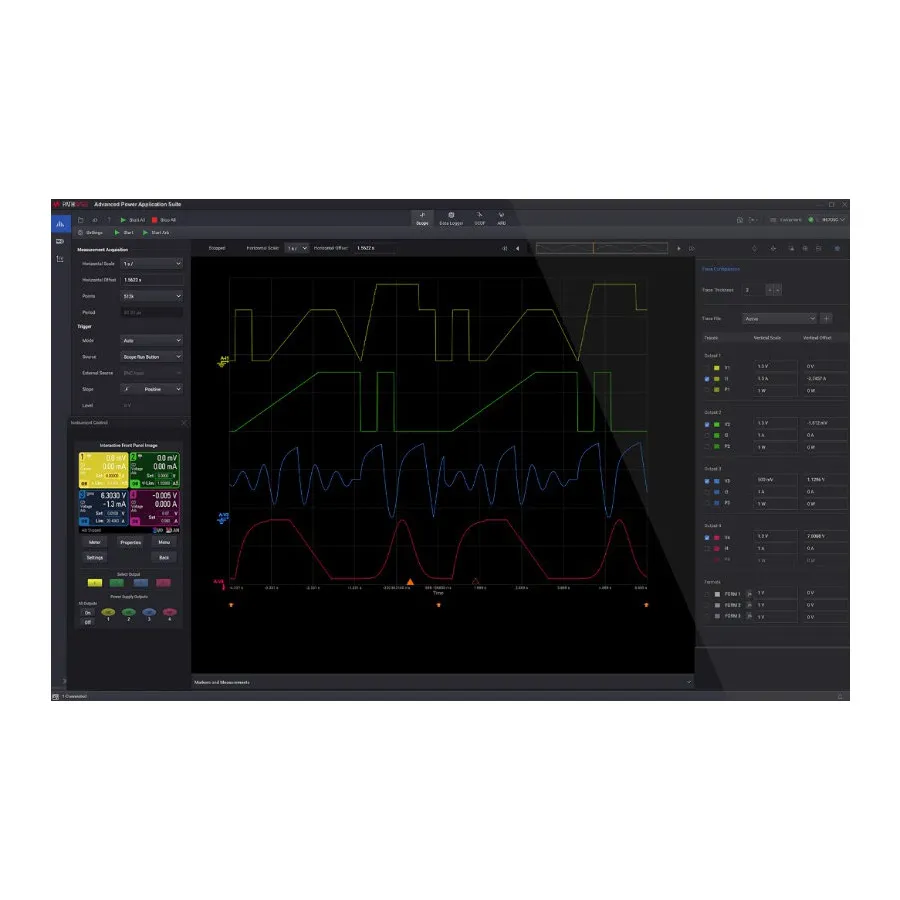

- Three analysis modes: scope (short-term waveform capture), data logger (long-term waveform capture), and CCDF (statistical analysis)
- Create complex waveforms using built-in functions, imported data, or custom formulas
- Export data for further power system analysis and seamless transfer to PW9253A battery test software
- Node-locked perpetual license with 12-month support and KeysightCare maintenance
Applications
- Power supply design and validation
- Device battery drain analysis
- Power system characterization and testing
- Parallel power unit configuration and control
Specifications
| Series | PW925XA Series |
