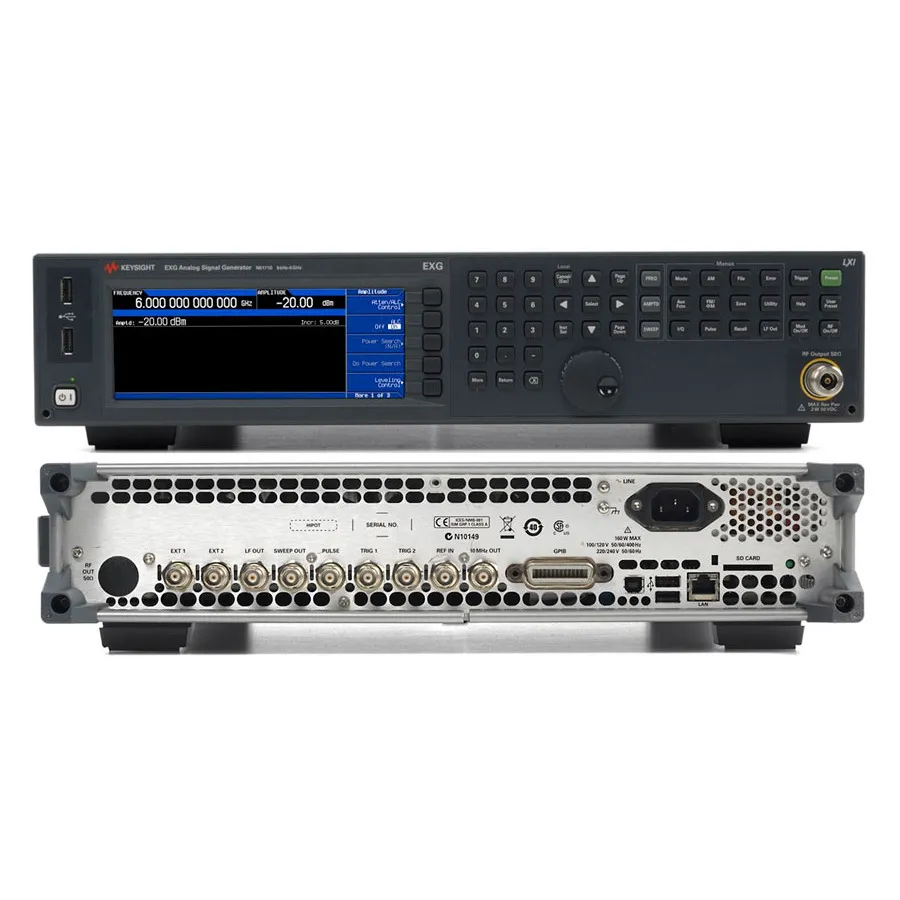

Keysight N5171B EXG X-Series Signal Generator
Request a quote
Keysight N5171B EXG X-Series RF signal generator with AM/FM and narrow pulse modulation, 9 kHz to 1 GHz, 900-µs switching speed.
Product details
| Model | N5171B/099/1CP104A/501/UNT/UNW |
| Manufacturer | Keysight |
| Category | Power Supply Accessories |
| Availability | Made to order |
Description
Overview
The Keysight N5171B EXG X-Series is a cost-effective RF analog signal generator optimized for manufacturing tests and component validation. With frequency coverage from 9 kHz to 1 GHz and advanced modulation capabilities, it provides excellent level accuracy and repeatability for parametric testing and receiver calibration applications.
Key Features
- Frequency range: 9 kHz to 1 GHz
- Output power: +24 dBm at 1 GHz
- Phase noise: -146 dBc/Hz at 1 GHz (20 kHz offset)
- Spurious: -96 dBc at 1 GHz
- Switching speed: 900 microseconds
- Modulation: AM, FM, phase modulation, narrow pulse
- Rack-mountable 2U design with handles and flanges
- Expandable via license key for future upgrades
- High mean time between failures (MTBF)
Applications
- Manufacturing parametric testing of RF components
- Receiver calibration and validation
- Component characterization
- Fast-switching test system applications
Specifications
| Type | Software/License |
| Series | EXG X-Series |
| Color | New Phantom Gray |
| Height | 8.1 mm |
