Keysight E36731ABV — complete battery testing solution combining E36731A emulator and BV9211B PathWave BenchVue software for device development and reliability assessment.
Product details
| Model | E36731ABV |
| Manufacturer | Keysight |
| Category | Power Supply Accessories |
| Availability | Made to order |
Description
Overview

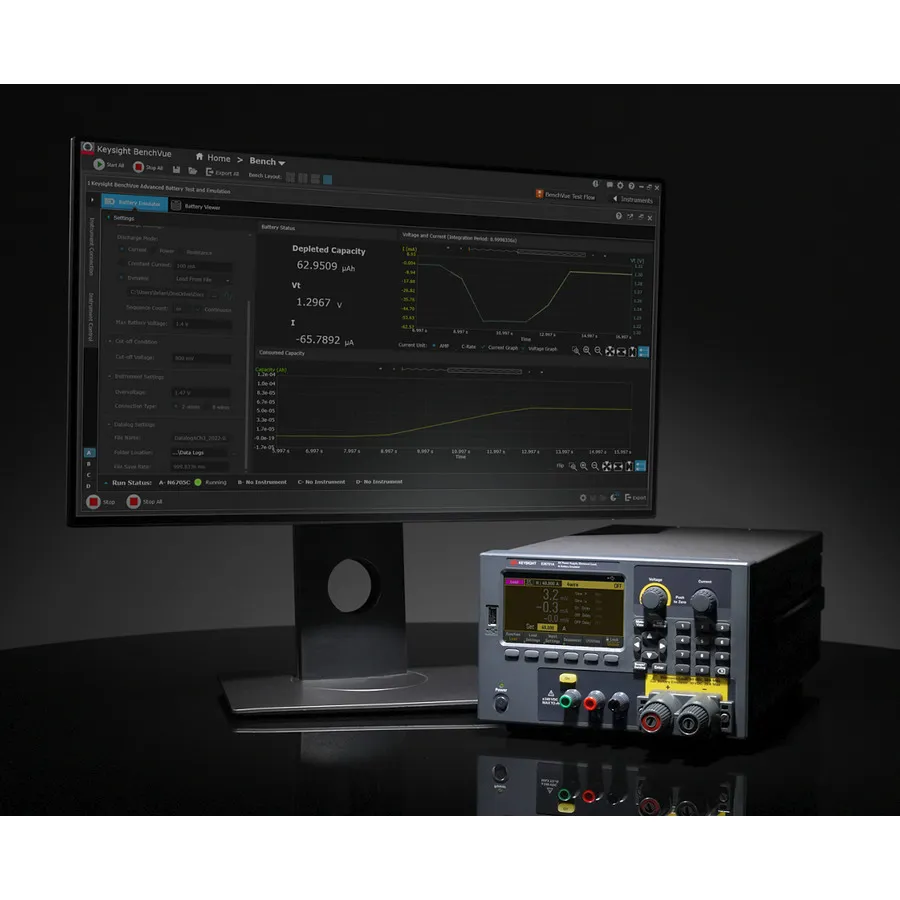

The Keysight E36731ABV is a complete battery emulation and testing solution that bundles the E36731A battery emulator hardware with the BV9211B PathWave BenchVue Advanced Battery Emulation Software. This integrated package enables comprehensive battery profiling, custom test sequence development, and lifecycle validation for battery-powered device development. Engineers can profile real batteries, create custom charge and discharge profiles, and perform extended cycle testing up to 1000 operations.
What's Included
- E36731A Battery Emulator (200W, 30V, 20A, 2-quadrant, 14-bit resolution)
- BV9211B PathWave BenchVue Advanced Battery Emulation Software
- AC power cord and test leads
- Certificate of calibration
Key Capabilities
- Battery emulation with custom charge/discharge profiles
- Cycle testing up to 1000 operations for aging analysis
- Four software operating modes: emulation, profiler, discharge/charge, and cycler
- Capacity rating and state-of-charge tracking
- Simultaneous voltage and current measurement with built-in digitizer
- Long-term data capture from seconds to multiple days
- LAN and USB connectivity (optional GPIB)
- API functions for programming integration
Applications
- Battery-powered device development and optimization
- Battery management system testing and validation
- Long-term reliability and aging simulation
- Battery model creation and import/export
- Production validation and acceptance testing
Specifications
| Power Output | 200W |
| Voltage Range | 0 to 30V |
| Current Range | 0 to 20A |
| Measurement Resolution | 14-bit |
| Operating Modes | Power supply and electronic load (4 modes: CC, CV, CR, CP) |
| Electronic Load Power | 250W max, 60V, 40A |
| Display | 4.3-inch LCD color |
| Programmable Resistance | 0 to 1000 ohm |
| Interfaces | LAN (LXI Core), USB; GPIB optional |
| Software Modes | Emulation, profiler, discharge/charge, cycler (up to 1000 cycles) |
| Form Factor | Bench-top compact unit with front and rear terminals |
