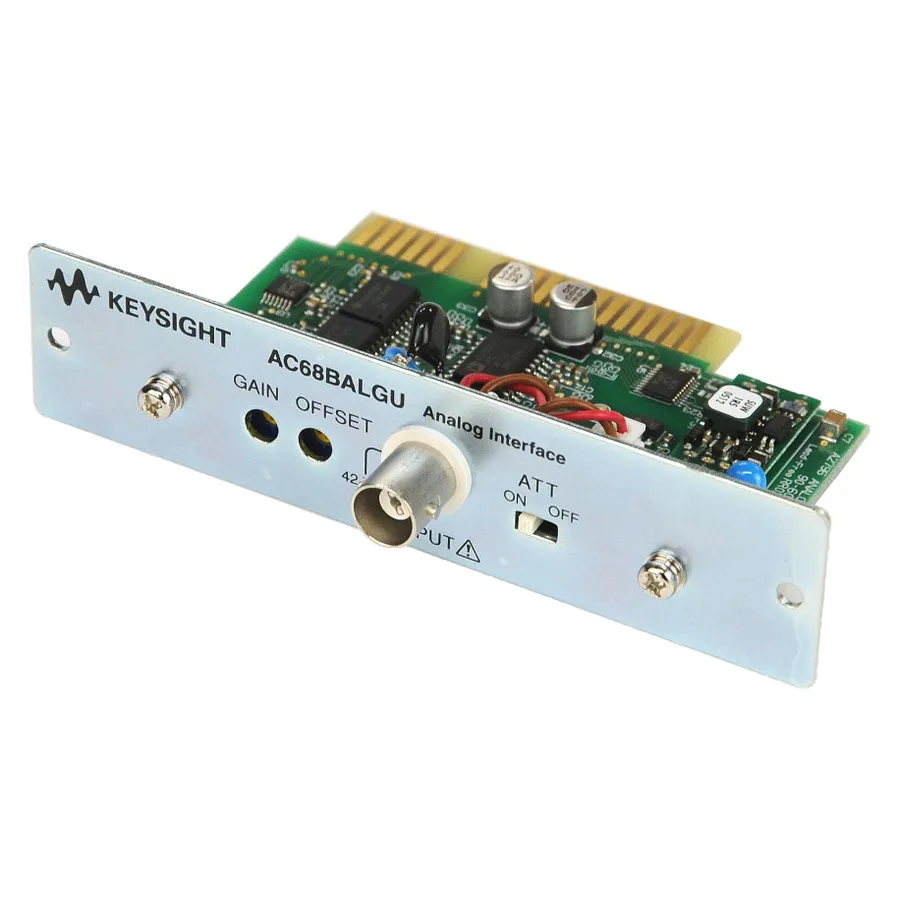

Keysight AC68BALGU User-Installable Analog Interface Board
Request a quote
Keysight AC68BALGU is a user-installable analog interface board that adds external control to AC6800B series, enabling voltage variation and waveform amplification.
Product details
| Model | AC68BALGU |
| Manufacturer | Keysight |
| Category | Power Supply Accessories |
| Availability | Made to order |
Description
Overview
The Keysight AC68BALGU is a user-installable analog interface board for AC6800B Series basic AC power sources. This optional accessory adds external analog control capability, allowing engineers to modulate AC output voltage or amplify input waveforms without removing the device from the test environment.
Key Features
- Easy customer installation in approximately 3 minutes with no adjustments required
- Two operational modes: EXT-AC and EXT-DC
- EXT-AC mode: modulates the output AC sine wave voltage according to an external DC control signal
- EXT-DC mode: accepts an external waveform and amplifies it for output
- Compatible with AC6801B, AC6802B, AC6803B, and AC6804B models
- Shares the same slot as the optional GPIB interface card and fault inhibit card
Applications
- Simulating real-world power grid voltage fluctuations during product testing
- Creating variable AC test signals without external signal generators
- Transient event simulation and programmed voltage profiles
- Automated test systems requiring analog control signals
Specifications
| Type | Interface |
| Series | AC6800B Series |
