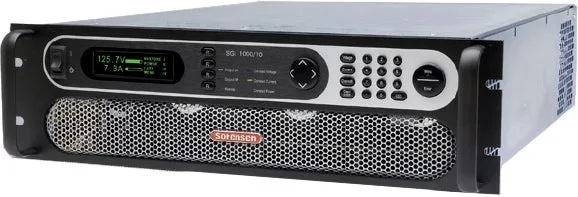

Sorensen SGI600X25C-1AAA Programmable DC Power Supply

Overview

The Sorensen SGI600X25C-1AAA is part of the next generation SG series of programmable DC power supplies designed for exceptional load transient response, low noise output, and the highest power density in the industry. The modular architecture allows flexible configuration to meet a wide range of power requirements, from 5 kW per module up to 30 kW in a single chassis.

The SGI (Sorensen General purpose Intelligent) series combines advanced power electronics with onboard intelligent controls, enabling sophisticated sequencing, constant power mode operation, and program save/recall functionality. The modular five-kilowatt power module design allows multiple modules to be configured within a single chassis, and multiple units can be paralleled to achieve system power levels up to 150 kW. The intuitive vacuum fluorescent graphical display supports eight languages with context-sensitive soft keys and front panel keyboard control.

Key Features

• Modular 5 kW power module architecture
• Flexible configuration: up to 15 kW in 3U, up to 30 kW in 6U chassis
• Wide voltage range: 0–10 V to 0–800 V in 5 kW increments
• Fast load transient response with protection from voltage excursions
• Low ripple and noise output
• Parallelable up to 150 kW for expandable systems
• Sequencing capabilities: Programmable custom waveforms with looping
• Vacuum fluorescent graphical display supporting eight languages
• Optional Ethernet control (hardware trigger compatible)
• Temperature-controlled variable-speed fans with low audible noise

Applications

• Repetitive automated testing with programmable sequencing
• Manufacturing and production line power requirements
• System validation and stress testing
• Development and research testing benches
• Applications requiring modular, scalable power solutions
